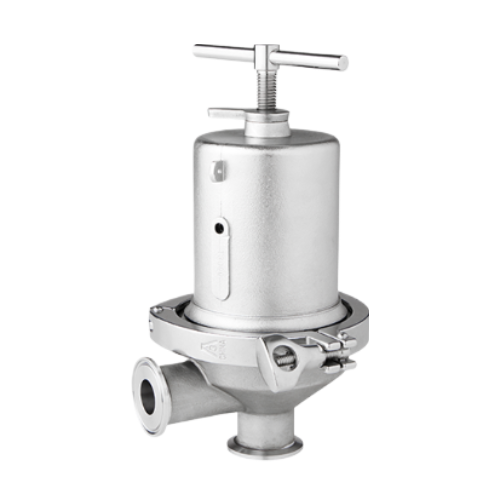

1/2" Steriflow FB6C-050-6L-AB-A3-TY-XX-JL-AA Sanitary Spring Operated Pressure Regulator - 316L Body 32 Ra, Teflon/Viton O-ring, Jorlon Diaphragm, Hard Seat - Includes 3A Cert, MTR, FDA Cert

1/2" Steriflow FB6C-050-6L-AB-A3-TY-XX-JL-AA Sanitary Spring Operated Pressure Regulator Technical Specs

For Food and Beverage Use Only

Other options and materials available, contact us today to talk with a Valve Expert in Exton, PA

3A and FDA approved, EPDM or Jorlon Diaphragm, Sanitary Pressure Regulator

The FB6C Series sanitary pressure regulator maintains precise pressure control in sanitary applications.

The regulator works by sensing pressure under the diaphragm on the downstream side of the seat. As the downstream pressure approaches the set point the pressure under the diaphragm overcomes the range spring's resistance and the plug starts to close and the downstream pressure drops to the set point. If the pressure under the diaphragm drops the spring pushes the plug open to maintain the set point.

Applications

The FB6C is used in process and clean utility applications in the food, beverage, dairy, health and beauty industries including CIP, SIP, centrifuges, autoclaves, culinary equipment, sterilizers, process tanks and nitrogen blanketing.

Features and Benefits

• No guiding surfaces in the fluid - prevents particulate generation
• 316L investment cast body; wetted parts made from 316L
• Self draining
• Great accuracy (large diaphragm yields less droop). Ask your rep for a FB6C performance calculator demonstration
• Clean-in-Place, Steam-in-Place - dome lock pin to allow CIP/SIP
• Jordan diaphragm- provides excellent chemical resistance and is FDA approved

Technical Specifications
