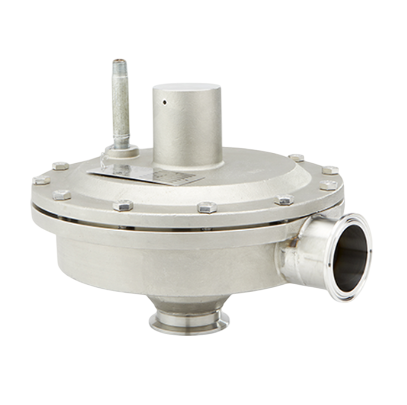

2" Steriflow FB6CPM-200-6L-AN-AS-TY-BC-JL-AA Sanitary Air Operated Pressure Regulator - 316L Body 32 Ra, Teflon/Viton O-ring, Jorlon Diaphragm, Hard Seat - Includes 3A Cert, MTR, FDA Cert

2" Steriflow FB6CPM-200-6L-AN-AS-TY-BC-JL-AA Sanitary Air Operated Pressure Regulator Technical Specs

For Food and Beverage Use Only

Other setpoints available with J-Series manual air load, I/P available, ask for other option

Other options and materials available, contact us today to talk with a Valve Expert in Exton, PA

Constant Pressure Modulating Valve for Hygienic Processing

The FB6CPM is an air loaded sanitary constant pressure modulating valve designed to control downstream pressure in sanitary environments. Adjustable from a cabinet air regulator, PLC or I-P transducer, no manual adjustments are required. The valve works by sensing the downstream pressure; as the pressure approaches the setpoint the diaphragm moves the plug towards closure to maintain the set pressure. If the downstream pressure drops below the setpoint the plug opens to allow more flow to stabilize the conditions. Made from high quality stainless steel and FDA approved materials the FB6CPM is perfect for CIP/SIP cycles and applications such as HTST/UHT pasteurization, heat exchangers and separator equipment. Robust and responsive design will handle varying process conditions in food, beverage, dairy and health and beauty industries and will perform consistently and reliably even in changing conditions.

Features and Benefits

• HTST/UHT process control
• 3A Approval 53-07
• Leak detection port
• Optional end connections
• Lifetime Jorlon diaphragm warranty
• Single diaphragm design
• Stem guiding above diaphragm
• Large diaphragm for optimal sensitivity to pressure changes
• Bolted bonnet
• Optional seat material for Class Vi shutoff
• Maximum operating pressure of 200 psi
• Maximum temperature of 300°F
• Accessory I/P or self-relieving air regulator available for automated and/or remote set point control

Technical Specifications
