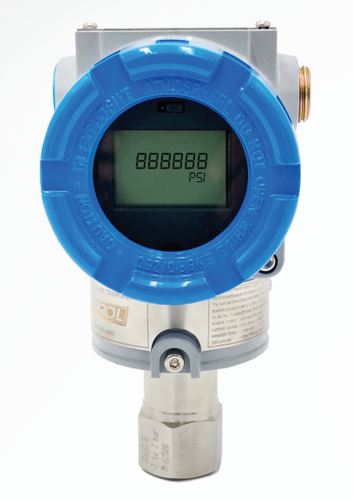

Tek-Trol Tek-Bar 3120A-G-7-FM-1-1-LCD, Explosion-Proof Multifunctional Gauge/Absolute Pressure Transmitter, 0-8500 psig- LCD option

Brand : Tek-Trol

Starting At: $1,389.99
SKU:
3120A-G-7-FM-1-1-LCD
Size Dropdown:
True"

Tek-Trol Tek-Bar 3120A-G-7-FM-1-1-LCD 0-8500 psig- LCD option Technical Specs

Features

  • Operator can calibrate device using zero/span button, no handheld calibrator required.Optionally handheld device communicator can be used to calibrate devices.
  • Digital communication HART protocol,latest version
  • Fail-safe mode process function for detecting any abnormal condition occurred
  • Standard accuracy +/-0.075%, High enhanced Accuracy +/-0.04% available
  • Automatic ambient temperature compensation improves performance of device
  • It can be used as a flow meter and should be installed vertically without using additional flanges
  • Various Output: 4-20 mA, digital signals
  • The mounting bracket can be rotated up to 360º and LCD display up to 270º
  • EEPROM write protection

Technical Specifications

Item
Explosion-Proof Multifunctional Gauge/Absolute Pressure Transmitter
Wetted Material
316L Stainless Steel
Process Connection
1/2" FNPT
Accuracy
0.075% of Span Standard, High enhanced accuracy +/-0.04% of span available in conformance to +/-3 Sigma
Rangeability / Turn Down Ratio
100:1 turn down
Maximum Working Pressure
2000 psi
Temperature Limits
Process: -40 °F to 248 °F (-40 °C to 120 °C); Ambient With LCD: -22 °F to 176 °F (-30 °C to 80 °C)
Power Requirement
11.9 VDC to 45 VDC
Output Signal
4 mA to 20 mA with HART
Service
Compatible gases, steam and liquids
Enclosure Rating
NEMA 4X (IP66) and explosion proof for Class I, Div I
Approval
CE,FM
