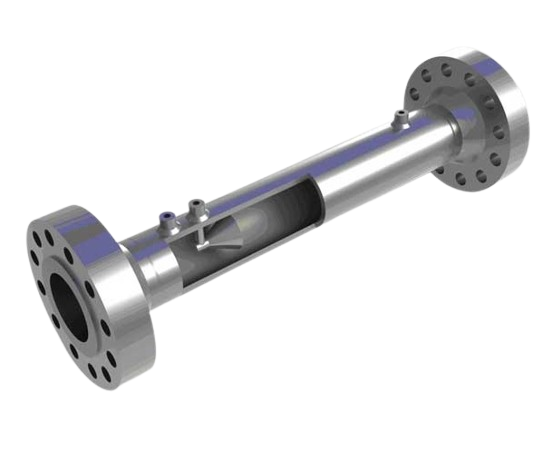

Tek-Trol Tek-DP 1620A Series, Direct Mount, 304 Stainless Steel Body, 150# Flange, Cone Flow Meter
Brand : Tek-Trol
Starting At:
$4,601.99
- SKU:
- Tek-DP-1400C
- Size Dropdown:
- True
Tek-Trol Tek-DP 1620A Series Cone Flow Meter Technical Specs
Features
- Accuracy up to ±0.5% of flow rate.
- Suitable for 2” to 48” with flanges rating from #150 to #2500 as per ASME.
- Simple, robust and reliable.
- Extremely immune to flow disturbances.
- Eliminates straight run requirements.
- Minimize metering footprint and reduce weight.
- Maximum installation flexibility.
- Low cost and minimal maintenance.
- Suitable for difficult or severe applications.
- High repeatability.
- Full optional verification system ‘PrognosisTM’ available.
Technical Specifications
Item
Cone Flow Meter
Size
2" to 6"
End Connection
150# Flange
Body Material
304 Stainless Steel
Accuracy
±0.5% with Calibration
Line Sizes
2" to 48"
