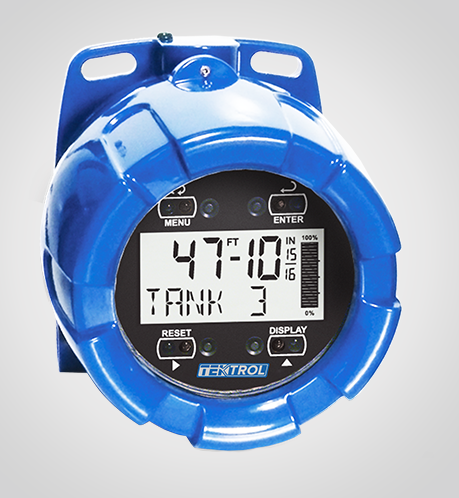

Tek-Trol Tek-LCD 7801B-0K1, Explosion-Proof Loop-Powered Feet & Inches Level

Brand : Tek-Trol

$1,785.99
SKU:
Tek-LCD 7801B-0K1

Country of Origin: Made in the United States

Tek-Trol Tek-LCD 7801B-0K1, Explosion-Proof Loop-Powered Feet & Inches Level Technical Specs

Features

  • Display Level in Feet & Inches
  • 4-20 mA Input Loop-Powered
  • Programmable 1/8 or 1/16 Inch Display
  • 20-Segment Tank Level Indicator
  • Lower Display for Tag, Volume, or Percent
  • SafeTouch® Through-Glass Button Programming
  • Open Collector Alarm Output
  • Loop-Powered or External DC-Powered Backlight Standard
  • Explosion-Proof, IP68, NEMA 4X Enclosure
  • Operates from -40 °C to 75 °C

Technical Specifications

Item
Loop-Powered Feet & Inches Level
Display
Feet & inches LCD, 0-699 ft 11 15/16 in (1/16 or 1/8 resolution)
Secondary Display
Feet & inches LCD, 0-699 ft 11 15/16 in (1/16 or 1/8 resolution)
Update Rate
7-digit alphanumeric (tag, volume, % or total)

Above 13°F: 2 updates per second
Tank Level Indicator
20-segment bar (Empty to Full)
Backlight
Externally powered, 9-36 VDC
Over/Under Range Indication
Flashing display at limits
Memory
Non-volatile memory (retains settings for 10+ years)
Operating & Storage Temp. Range
-40°C to 75°C (40°F to 158°F)
Enclosure
Explosion-proof die-cast aluminum, NEMA 4X / IP68

Country of Origin:
Made in the United States
