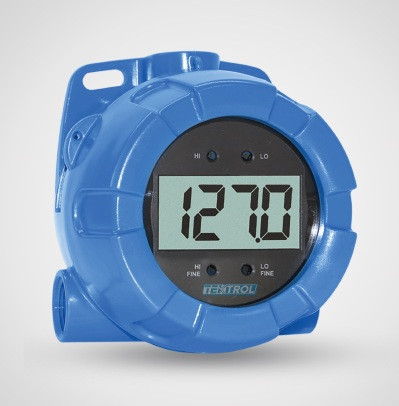

Tek-Trol Tek-LCD 7805A-0K0, NEMA 4X Large Display Loop-Powered Indicator

Brand : Tek-Trol

$880.99
SKU:
Tek-LCD 7805A-0K0
Tek-Trol Tek-LCD 7805A-0K0, NEMA 4X Large Display Loop-Powered Indicator

Country of Origin: Made in the United States

View Details

Tek-Trol Tek-LCD 7805A-0K0, NEMA 4X Large Display Loop-Powered Indicator

Features

  • 4-20 mA Input
  • Modern, Sleek and Practical Enclosure for Safe Areas
  • 3½ Digits, 1³ (25.4 mm) Display
  • Display Mountable at 0, 90, 180, & 270 Degrees
  • Easy Calibration and Installation
  • Loop-Powered Backlight Option
  • 1 V Drop (4 V with Backlight)
  • Plastic NEMA 4X, IP65 Enclosure
  • Flanges for Wall or Pipe Mounting
  • HART Protocol Transparent
  • Operates from -40 °C to 75 °C

Technical Specifications

Item
Loop-Powered Indicator
Display
3½-digit LCD, 1³ characters
Display Range
-1,999 to 1,999
Update Rate
2.5 updates per second
Backlight
Externally powered (9-36 VDC)
Display Orientation
Adjustable in 90° increments up to 270°
Over-Range Indication
Displays "1" on leftmost digit
Operating & Storage Temp. Range
-40°C to 75°C
Enclosure
NEMA 4X / IP65 polycarbonate, UV stabilized

Country of Origin:
Made in the United States
