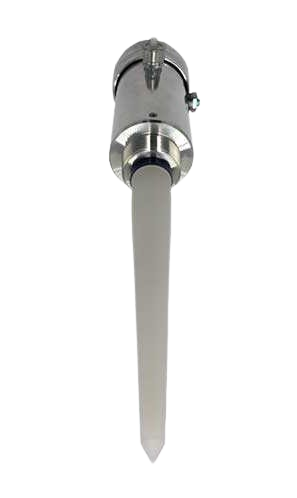

Tek-Trol Tek-Wave 4300A-033R6CH-ALATE, Explosion-Proof Radar Non-Contact Level Transmitter, 33' Range, 2 Wire, 4-20mA, HART
Brand : Tek-Trol
$4,830.99
- SKU:
- 4300A-033R6CH-ALATE
- Size Dropdown:
- True
- Processing Time:
- 14 Days
Country of Origin: Made in the United States
Tek-Trol Tek-Wave 4300A-033R6CH-ALATE, Explosion-Proof Radar Non-Contact Level Transmitter Technical Specs
Features
- 2-Wire Operation
- Self-adjusting tracking radar
- Simple push-button calibration
- Ouput 4-20 mA/20-4 mA
- Communication with HART 7
Technical Specifications
Item
Radar Level Transmitter
Temperature Range
-40°F to 140°F (-40°C to 60°C)
Operation
Pulse Radar
Accuracy
±0.1% of Max. Range
Response Time
2-3 echos/sec
Power Input
20-35 VDC
Pressure Limit
72.5 PSI (5 bar) (Without De-coupler)
Power Requirement
20-35 VDC
Conduit Entry
1/2" NPT x 2
Enclosure
NEMA 6 (IP68)
Failsafe
On lost echo after 60 seconds to 180 seconds, user selectable to 22 mA or 3.5 mA
Output Signal
4 to 20 mA with HART
Agency Approvals
FM for Can. & US Explosion Proof Class I, Div.1, Groups B,C, D: Dust-Ignition Proof Enclosure for Class II/III Div. 1,Groups E, F, G.
