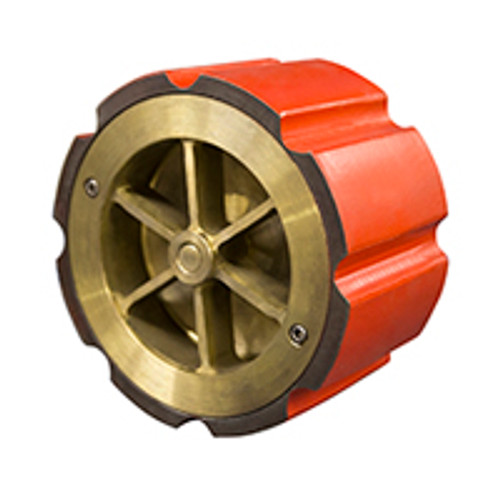

Titan FCI CV 90-DI-S-3 Series- 8" Silent Check Valve, Wafer Type, Center Guided, Ductile Iron Body, Stainless Steel Seat
Brand : Titan Flow Control
Starting At:
$1,478.99
- Size:
- 8"
- Size Dropdown:
- True
Country of Origin: Made in the United States
Titan FCI CV 90-DI-S-3 Series- 8" Silent Check Valve, Wafer Type, Stainless Steel Seat Technical Specs
Features
- Designed for Long Service Life
- Minimal Head Loss
- Quick Closure to Reduce Water Hammer
- Resillient Soft Seats
- Versatile Design
- Patented Design with Integral Straightening Vanes
Technical Specifications
Item
Silent Check Valve
Type
Wafer Type
Size
8"
Body Material
Ductile Iron
Trim
Stainless Steel or Bronze
Seats
Stainless Steel with Viton O-ring
ASME Class
ASME CLASS 150
Temperature Rating
WOG (Non-shock): 250 PSI @ 100 °F (2" ~ 12")
