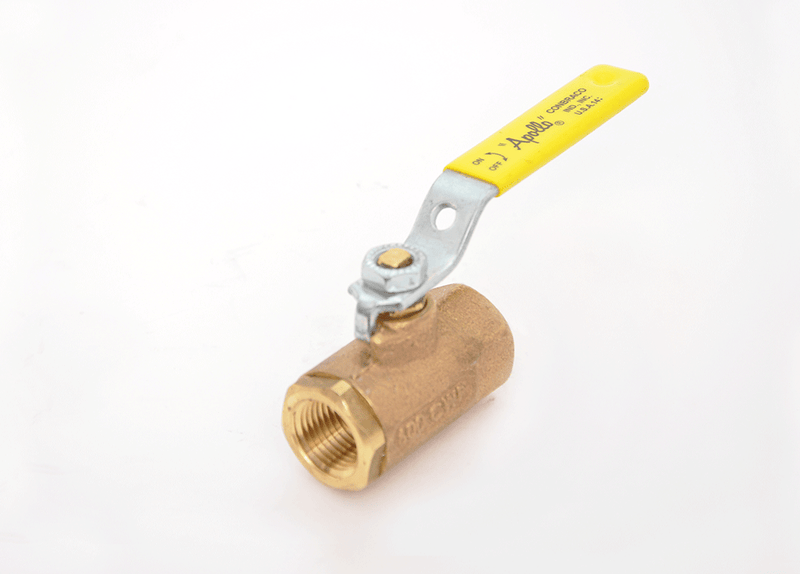

Apollo 70-100 Series - Bronze, Standard-Port, NPT, Ball Valve
SKU:
Apollo 70-100 Series
Made in the United States
Starting at
$32.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Size1/4"-3"
Max. Pressure600 psi CWP, 150 psi SWP
Body MaterialBronze
Connection TypeThreaded (FNPT x FNPT)
PortStandard
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Item | Ball Valve |
|---|---|
| Size | 1/4"-3" |
| Maximum Temp | 500 F |
| Body Seal | PTFE |
| Brand | Apollo Valves |
| Manufacturer Part # | Apollo 70-100 Series |
| Country of Origin | Made in the United States |
Materials & Construction
| Body Material | Bronze |
|---|---|
| Ball Material | Chromium Plated Ball |
| Handle Type | Lever |
| Seat Material | RPTFE |
| Stem Packing | MPTFE |
| Stem Bearing | RPTFE |
| Stem Material | B16 |
Performance
| Max. Pressure | 600 psi CWP, 150 psi SWP |
|---|
Connections
| Port | Standard |
|---|---|
| Connection Type | Threaded (FNPT x FNPT) |
