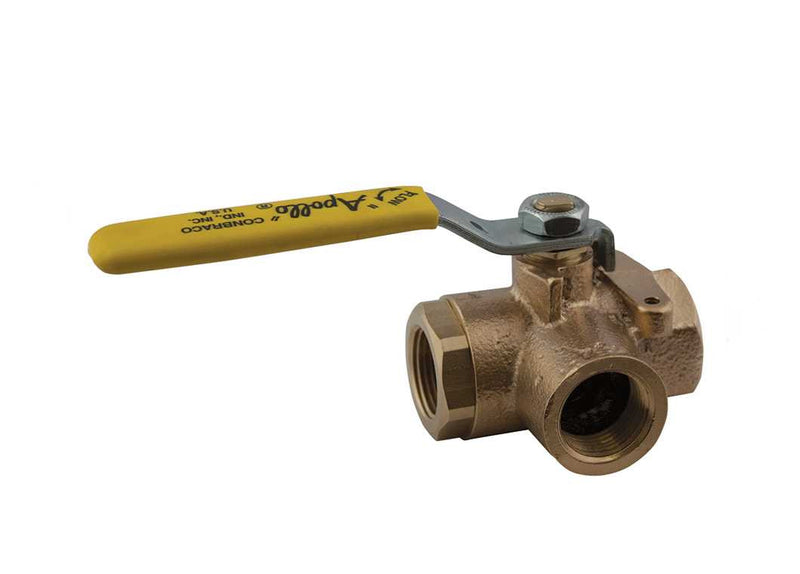

Apollo 70-600 Series - 3 Way, Diversion, Bronze, Reduced-Port, NPT, Ball Valve

$28.99

Product Description

Apollo 70-600 Series -  Technical Specs

Item
Three Way Ball Valve
Body Material
Bronze
Port
Full
Connection Type
Threaded (NPT x NPT X NPT)
Size
1/4"-2"
Max. Pressure
400 PSI CWP
Ball Material
Brass B16, Chrome Plated
Handle Material
Steel, Zinc Plated with Vinyl
Handle Type
Lever
Seat Material
RPTFE
Stem Packing
RPTFE
Stem Bearing
RPTFE
Stem Material
B16
Body Seal
PTFE




Click here for the Apollo 70-600 Specification Sheet

Why Choose the Apollo 70-600

The Apollo 70-600 valve series is available for immediate purchase through ValveMan.com. The Apollo 70-600 is manufactured by Apollo Valves in the USA through Conbraco Industries. Since 1928, the Apollo Valve brand has prided itself in manufacturing the overwhelming majority of its product line in the USA, in one of its three main manufacturing facilities. It’s “Made in America” commitment exemplifies Apollo Valve’s dedication to providing high quality valves for residential and commercial use at incredible pricing. Apollo Valve has installed its products at esteemed engineering firms such as Boeing aircraft facilities, numerous prestigeous hospitals, and even at Microsoft business offices. The bottom line, when you purchase Apollo, you purchase quality.

What’s Inside the Apollo 70-600?

The Apollo 70-600 series is a bronze, three way, ball valve that is available in a wide-range of sizes, including 1/4" to 2" valve sizes. The National Pipe Thread Taper (NPT) end connection is perfect for any industrial setup, while the steel, zinc plated with vinyl handle material is guaranteed to hold up under even the toughest conditions. The 70-600 valve is suitable for a maximum temperature range of 500 degrees Fahrenheit. The Apollo 70-600 valve features a two piece body, reinforced seats, blow-out-proof stem design, and an adjustable packing gland which enables the diversion of media in either direction.

The Apollo 70-600 Series Includes the Following Sizes:

Type of Application to Use the Apollo 70-600

The uniqueness of the Apollo 70-600 lies in its patented three way design that presents a dependable yet affordable valve. A three way ball valve is best used for media diversion, mixing medias coming from different sources, and separating incoming or outgoing medias in two separate directions. These valves have one inlet and two outlets. To change the valve position, turn of the lever a quarter of the way, done.

Purchasing the Apollo 70-600

ValveMan.com has been and industrial valve shop for over three generations, with it’s heritage reaching back as far as 1965. ValveMan’s team of in-house-industrial-engineers, offers unparallelled expertise and incredible pricing. Purchasing valves has never been easier thanks to our easy-to-navigate website and quick response time from our industrial valve experts. Here at ValveMan.com, we pride ourselves on our wide selection of top of the line valves that suit nearly every industrial setting. Whether on the phone, at our online valve store, or in person at our office located in the heart of Exton, PA, let ValveMan.com help you engineer and build the perfect valve for your next valve project.
