Save 14%

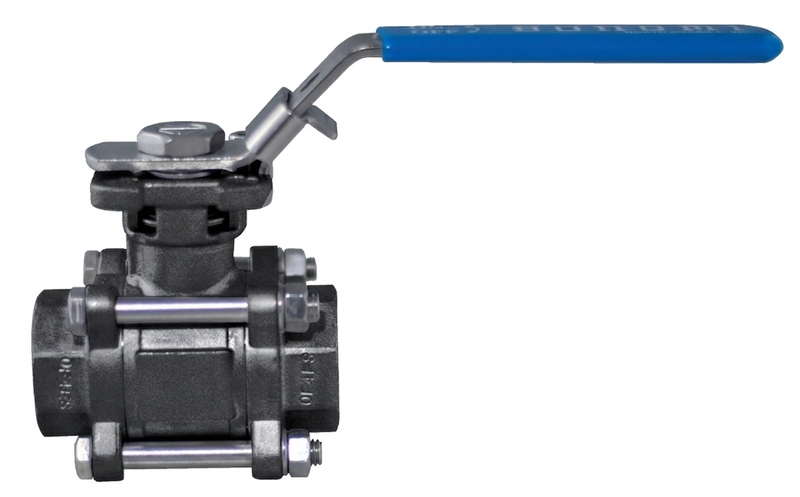

Bonomi 621 LL Ball Valve, Direct Mount, Full Port, 3 Piece, Carbon Steel, Socket Weld, with Latch Locking Lever
SKU:
Bonomi-621LL-Series
Starting at
$70.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Size1/4" to 4"
Pressure Rating1/4" to 2" (1000 psi), 2-1/2" to 4" (800 psi), 150 psi steam
Body MaterialCarbon Steel
Connection TypeSocket Weld
PortFull Port
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Item | Ball Valve |
|---|---|
| Size | 1/4" to 4" |
| Body Type | 3-Piece |
| Temp. Range | -40> |
| Brand | Bonomi Valves |
| Manufacturer Part # | Bonomi-621LL-Series |
Materials & Construction
| Body Material | Carbon Steel |
|---|---|
| Ball Material | AISI 316 Stainless Steel |
| Seat Material | TFM 1600 |
| Handle Type | Latch Locking Handle |
| Stem | Blowout Proof, Adjustable multi-layer V-Ring Stem |
Performance
| Pressure Rating | 1/4" to 2" (1000 psi), 2-1/2" to 4" (800 psi), 150 psi steam |
|---|
Connections
| Port | Full Port |
|---|---|
| Connection Type | Socket Weld |
