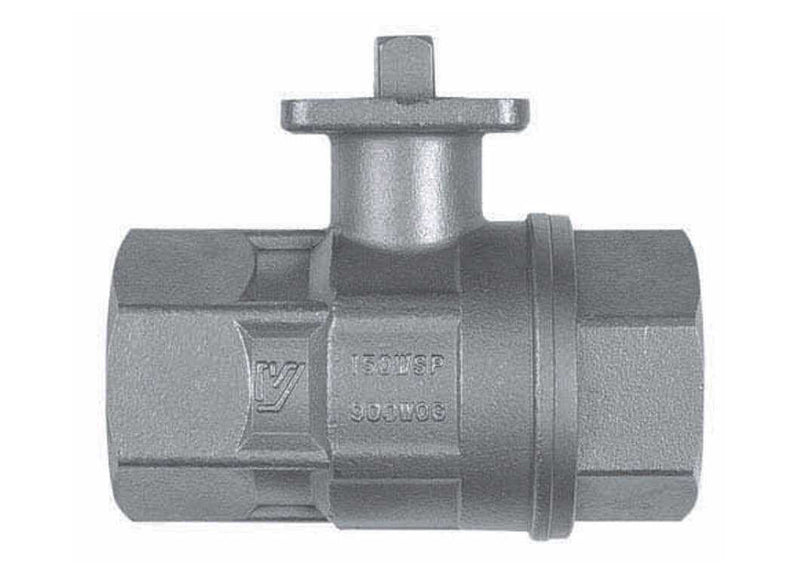

Bonomi 700076 Series - Ball Valve, 2-Piece, Stainless Steel, Full Port, FNPT Threaded, Manually Operated

Name: Bonomi 700076 Series - Ball Valve, 2-Piece, Stainless Steel, Full Port, FNPT Threaded, Manually Operated
Brand: Bonomi Valves
SKU: BNM-700076

SKU: BNM-700076

Starting at $57.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3"

Select a size above to add to cart.

Pressure Rating1000 psi, 150 psi steam

Body MaterialCF8M Stainless Steel

End ConnectionThreaded (FNPT)

Temperature Rating-4°F to +366°F

PortFull Port

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Ball Valve
Design Type	2-Piece
Brand	Bonomi Valves
Manufacturer Part #	BNM-700076

Materials & Construction

Body Material	CF8M Stainless Steel
Ball Material	316 Stainless Steel
Seat Material	P.T.F.E.
Packing Material	Viton
Handle Type	Lever
Stem Design	Blowout Proof

Performance

Pressure Rating	1000 psi, 150 psi steam
Temperature Rating	-4°F to +366°F

Connections

End Connection	Threaded (FNPT)
Port	Full Port

Standards & Certifications

See Specification Sheet

Download Specification Sheet (PDF)
