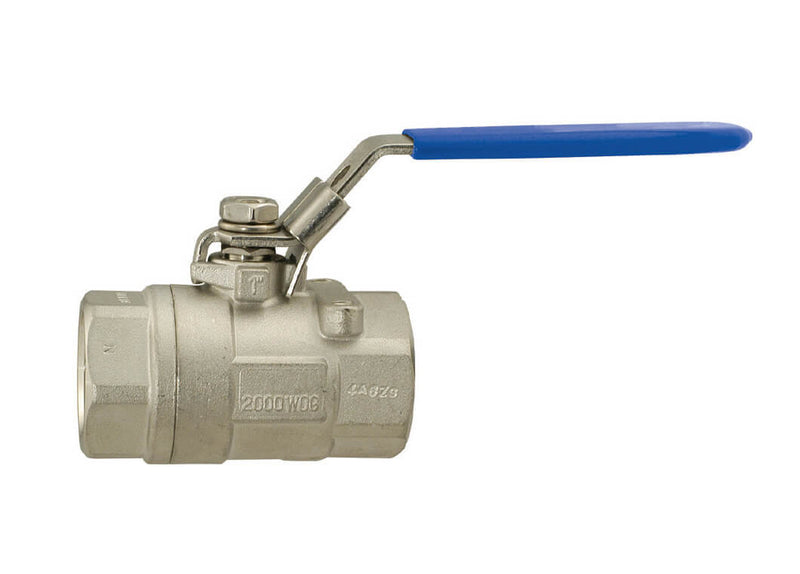

Bonomi 700LL Series - 2 Piece, Stainless Steel, Full-Port, Manual Ball Valve with Locking Handle
SKU:
BNM-700LL
Starting at
$28.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Pressure Rating2000 psi (1/4" to 1"), 1500 psi (1-1/4 to 2") (Refer to P/T Chart)
Body Material316 Stainless Steel
End ConnectionThreaded (FNPT)
Temperature Rating-4F to 450F (Refer to P/T Chart)
PortFull Port
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Item | Ball Valve |
|---|---|
| Design Type | 2-Piece |
| Brand | Bonomi Valves |
| Manufacturer Part # | BNM-700LL |
Materials & Construction
| Body Material | 316 Stainless Steel |
|---|---|
| Ball Material | 316 Stainless Steel |
| Seat Material | R.T.F.E. |
| Packing Material | P.T.F.E. |
| Handle Type | Locking Lever |
| Stem Design | Blowout Proof |
Performance
| Pressure Rating | 2000 psi (1/4" to 1"), 1500 psi (1-1/4 to 2") (Refer to P/T Chart) |
|---|---|
| Temperature Rating | -4F to 450F (Refer to P/T Chart) |
Connections
| End Connection | Threaded (FNPT) |
|---|---|
| Port | Full Port |
Standards & Certifications
See Specification Sheet
