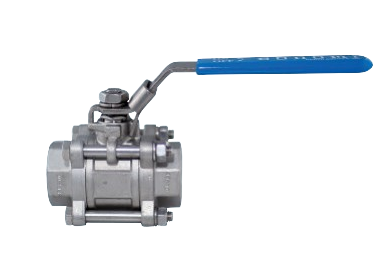

Bonomi 710 LL Ball Valve, Full Port, 3 Piece, Stainless Steel, FNPT, with Latch Locking Lever

Name: Bonomi 710 LL Ball Valve, Full Port, 3 Piece, Stainless Steel, FNPT, with Latch Locking Lever
Brand: Bonomi Valves
SKU: Bonomi-710LL-Series

SKU: Bonomi-710LL-Series

Starting at $44.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"

Size1/4" to 4

Pressure Rating800 psi

Body MaterialStainless Steel

Connection TypeFNPT Threaded

PortFull Port

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Ball Valve
Size	1/4" to 4
Body Type	3-Piece
Temp. Range	-40>
Brand	Bonomi Valves
Manufacturer Part #	Bonomi-710LL-Series

Materials & Construction

Body Material	Stainless Steel
Ball Material	AISI 316 Stainless Steel
Seat Material	TFM 1600
Handle Type	Latch Locking Lever
Stem	Blowout Proof, Adjustable multi-layer V-Ring Stem

Performance

Pressure Rating	800 psi

Connections

Port	Full Port
Connection Type	FNPT Threaded

Download Specification Sheet (PDF)
