Save 14%

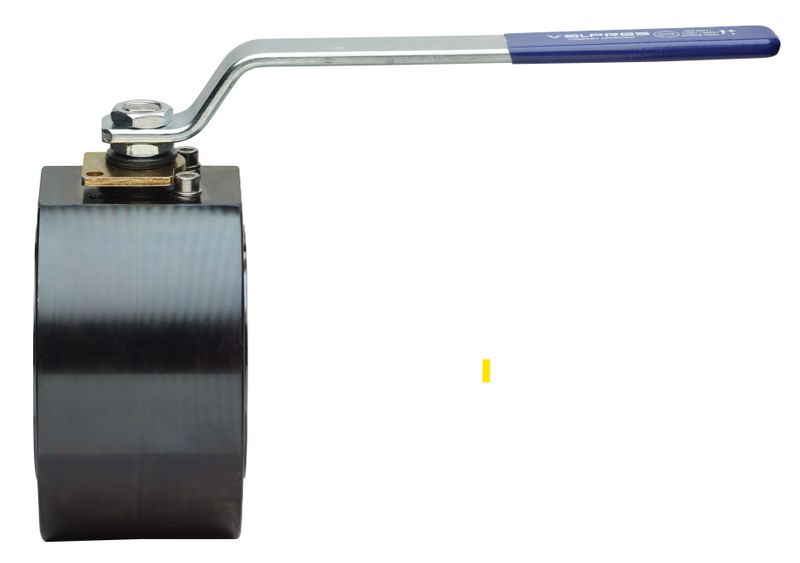

Bonomi 722V17 Ball Valve, Wafer Style, Full Port, Carbon Steel, ANSI Class 150 Flange
SKU:
Bonomi-722V17-Series
Made in Italy
Starting at
$183.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Size1/2" to 4"
Body MaterialCarbon Steel
Connection TypeANSI Class 150 Flange
PortFull Port
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Item | Ball Valve |
|---|---|
| Size | 1/2" to 4" |
| Design Type | Wafer Style |
| Fire Safe | EN ISO 10497 and API 607 |
| Brand | Bonomi Valves |
| Manufacturer Part # | Bonomi-722V17-Series |
| Country of Origin | Made in Italy |
Materials & Construction
| Body Material | Carbon Steel |
|---|---|
| Ball Material | A351-CF8M Stainless Steel |
| Seat Material | TFM-MPTFE |
| Stem Material | A479-TP316 Stainless Steel |
| Stem Design | Blowout Proof Stem |
| Handle Type | Locking Handles Available |
Performance
| Temp. Rating | -4> |
|---|
Connections
| Port | Full Port |
|---|---|
| Connection Type | ANSI Class 150 Flange |
Standards & Certifications
See Specification SheetISO 5211 direct-mount paddouble-D stem
