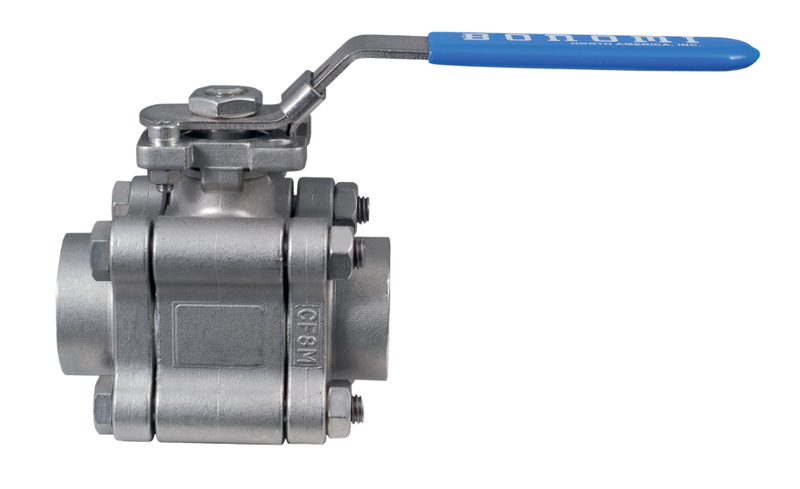

Bonomi 742 LL Ball Valve, High Performance, Direct Mount, Full Port, 3 Piece, Stainless Steel, Butt Weld, PEEK Seats, with Locking Lever
SKU:
Bonomi-742LL-Series
Starting at
$144.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Size1/4" to 4"
Pressure ClassClass 900 ( 1/4" to 2"), Class 600 (2-1/2" to 4")
Body MaterialStainless Steel
Connection TypeButt Weld
PortFull Port
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Item | High Performance Ball Valve |
|---|---|
| Size | 1/4" to 4" |
| Design Type | 3-Piece |
| Fire Safe | API 607 (1/4" to 2"), Fire Safe Design (2-1/2" to 4") |
| Brand | Bonomi Valves |
| Manufacturer Part # | Bonomi-742LL-Series |
Materials & Construction
| Body Material | Stainless Steel |
|---|---|
| Ball Material | AISI 316 Stainless Steel |
| Seat Material | PEEK |
| Stem Material | AISI 316 Stainless Steel |
| Stem Design | Grounded Ball & Stem |
| Handle Type | Locking Lever Handle |
Performance
| Pressure Class | Class 900 ( 1/4" to 2"), Class 600 (2-1/2" to 4") |
|---|---|
| Pressure Rating | 2160 psi (1/4" to 2"), 1440 psi (2-1/2" to 4")- WSP-250 psi |
| Working Steam Pressure | 250 psi |
| Temp. Rating | -50> |
Connections
| Port | Full Port |
|---|---|
| Connection Type | Butt Weld |
Standards & Certifications
See Specification SheetISO 5211
