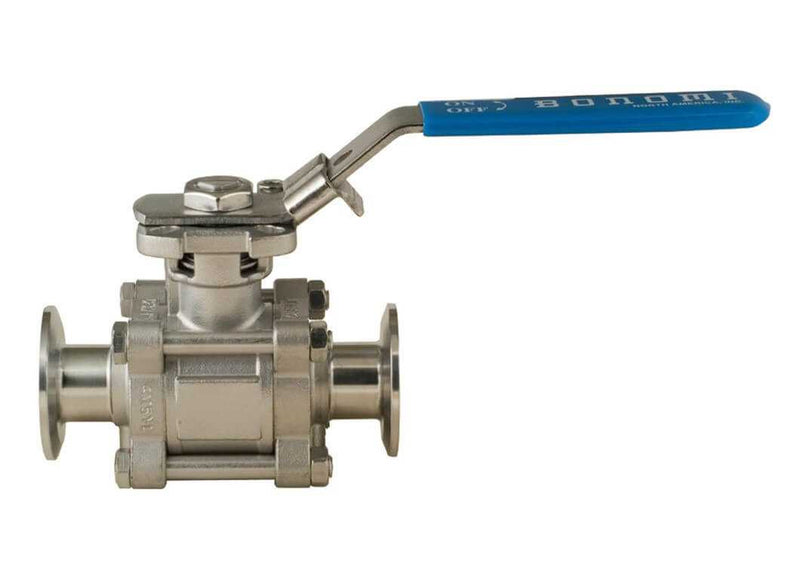

Bonomi 771 Series - Sanitary Ball Valve, 3-Piece, Stainless Steel, Full Port, Tri-Clamp, Cavity Filled, Manually Operated
SKU:
BNM-771
Starting at
$141.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Pressure Rating1000 psi WOG (1/2" to 2") 800 psi WOG (2 1/2" to 4")
Body MaterialCF3M Stainless Steel
End ConnectionTri-Clamp
Temperature Rating-20°F to 450°F
PortFull Port
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Item | Ball Valve |
|---|---|
| Design Type | 3-Piece |
| Internal Polish | Ra 15 micron |
| Brand | Bonomi Valves |
| Manufacturer Part # | BNM-771 |
Materials & Construction
| Body Material | CF3M Stainless Steel |
|---|---|
| Ball Material | 316L Stainless Steel |
| Seat Material | P.T.F.E. |
| Packing Material | P.T.F.E. |
| Handle Type | Locking Lever |
| Stem Design | Blowout Proof |
Performance
| Pressure Rating | 1000 psi WOG (1/2" to 2") 800 psi WOG (2 1/2" to 4") |
|---|---|
| Temperature Rating | -20°F to 450°F |
Connections
| End Connection | Tri-Clamp |
|---|---|
| Port | Full Port |
Standards & Certifications
See Specification Sheet
