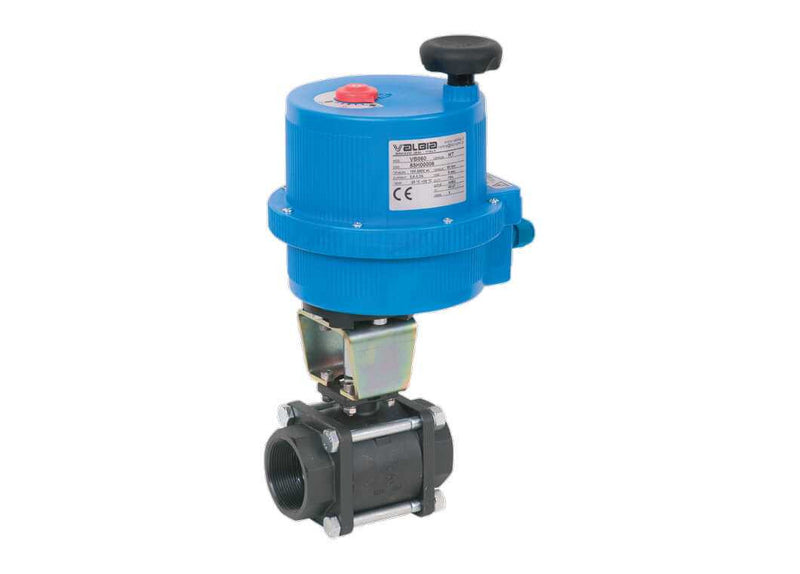

Bonomi 8E710085 Series - Carbon Steel, Full Port, Threaded, Ball Valve with Electric Actuator

Name: Bonomi 8E710085 Series - Carbon Steel, Full Port, Threaded, Ball Valve with Electric Actuator
Brand: Bonomi Valves
SKU: BNM-8E710085

SKU: BNM-8E710085

Starting at $453.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"

Select a size above to add to cart.

Pressure Rating1000 PSI WOG - 150 PSI Steam

Body MaterialCarbon Steel

End ConnectionThreaded (FNPT)

PortFull Port

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	2-Way Electrically Actuated Ball Valve
Design Type	3-Piece
Control	On/Off
Available Voltages	100-240V - AC, 24V - AC/DC, 12V - AC/DC
Actuation Type	Fail in Place
Brand	Bonomi Valves
Manufacturer Part #	BNM-8E710085

Materials & Construction

Body Material	Carbon Steel
Ball Material	Stainless Steel
Seat Material	P.T.F.E.
Packing Material	P.T.F.E.
Stem Design	Blowout Proof

Performance

Pressure Rating	1000 PSI WOG - 150 PSI Steam
Temp. Rating	-4F to +406F
NEMA Rating	NEMA 4/4x

Connections

Port	Full Port
End Connection	Threaded (FNPT)

Standards & Certifications

See Specification Sheet

Download Specification Sheet (PDF)
