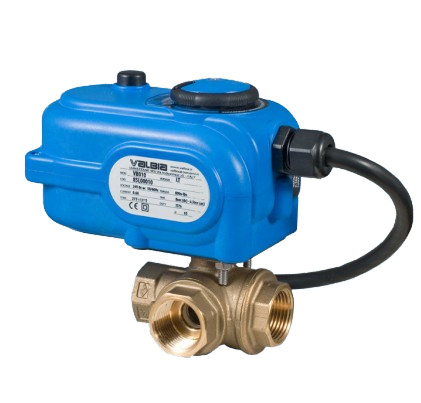

Bonomi 8E866LF-00 Series Ball Valve, 365N LF Direct Mount, 3-Way, Lead-Free Brass, NPT, L-Port with Electric Actuator
SKU:
8E866LF-00 Series
Starting at
$309.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Size Range1/4" to 3/4"
Pressure Rating400 psi WOG
Body MaterialLead-Free Brass
End ConnectionNPT Threaded
PortingL-Port
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 3-Way Electrically Actuated Ball Valve |
|---|---|
| Size Range | 1/4" to 3/4" |
| Available Actuator Voltage | 24V AC/DC |
| Duty Cycle | (75% w/ 8 sec. cycle time) 120V AC, (50% w/ 6.5 sec. cycle time) 24V AC/DC |
| Brand | Bonomi Valves |
| Manufacturer Part # | 8E866LF-00 Series |
Materials & Construction
| Body Material | Lead-Free Brass |
|---|---|
| Ball Material | Lead-Free Brass |
| Seat Material | PTFE |
| Stem Material | Lead-Free Brass |
| Stem Design | Blowout Proof Stem |
Performance
| Pressure Rating | 400 psi WOG |
|---|---|
| Temp. Rating | -4> |
Connections
| Porting | L-Port |
|---|---|
| End Connection | NPT Threaded |
