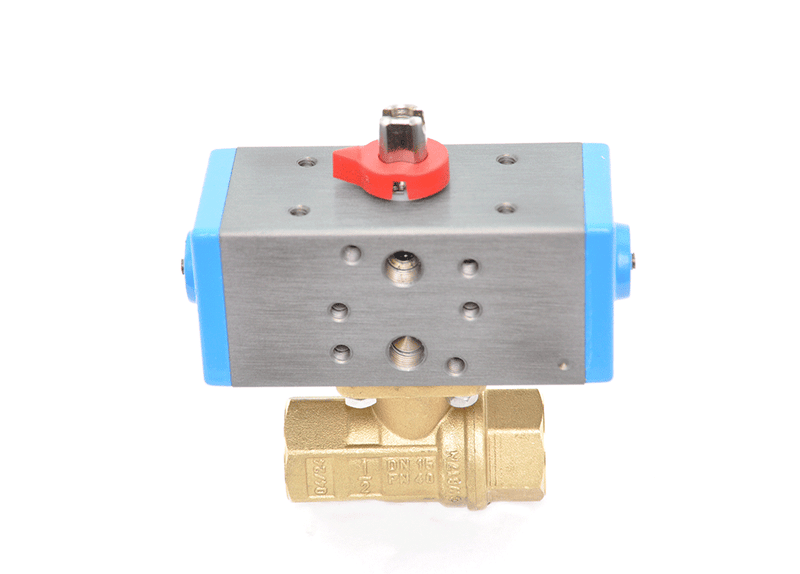

Bonomi 8P0080LF Series - 2-Way, Lead Free, Brass, Full Port, NPT, Ball Valve with Double Acting Pneumatic Actuator
SKU:
BNM-8P0080LF
Starting at
$207.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Size1/4" to 4"
Max. Pressure600 WOG - 150 WSP
Body MaterialLead-Free Brass
Connection TypeThreaded (FNPT x FNPT)
PortFull Port
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Ball Valve |
|---|---|
| Size | 1/4" to 4" |
| Max. Process Temp | -4 to 366°F |
| Actuation | Double Acting (DA) Pneumatic |
| Fail Position | Fail in Place |
| Brand | Bonomi Valves |
| Manufacturer Part # | BNM-8P0080LF |
Materials & Construction
| Body Material | Lead-Free Brass |
|---|---|
| Body Style | 2-Way |
| Ball Material | Lead-Free Brass (SLT. Coated) |
| Seat Material | PTFE |
| Stem Material | Lead-Free Brass |
| Stem Type | Blowout Proof |
Performance
| Max. Pressure | 600 WOG - 150 WSP |
|---|---|
| Actuator Supply Pressure | Min. 80 psi and Max. 116 psi |
Connections
| Port | Full Port |
|---|---|
| Connection Type | Threaded (FNPT x FNPT) |
