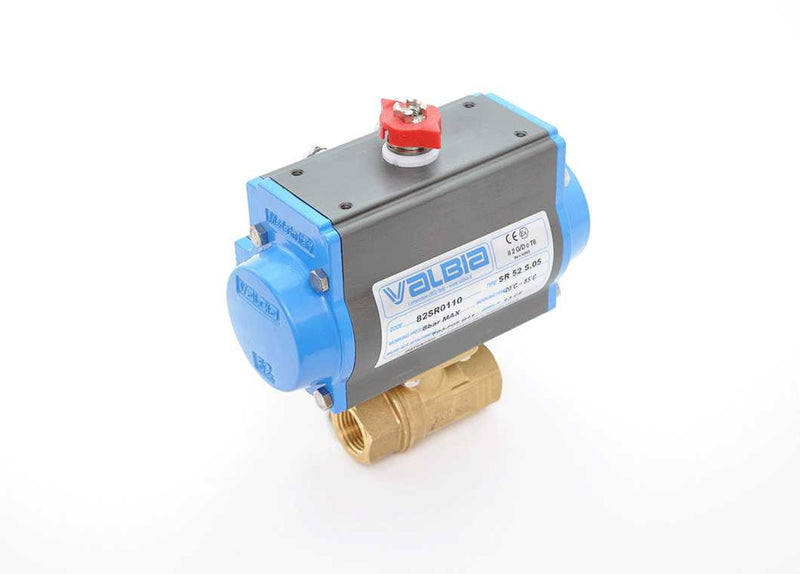

Bonomi 8P0082LF Series - 2 Way, Lead-Free, Brass Body, Full Port, NPT, Ball Valve with Spring Return Pneumatic Actuator

Bonomi Valves Authorized Distributor

Bonomi 8P0082LF Series - 2-Way, Lead-Free, Brass Body, Full Port, NPT, Ball Valve with Spring Return Pneumatic Actuator

Name: Bonomi 8P0082LF Series - 2-Way, Lead-Free, Brass Body, Full Port, NPT, Ball Valve with Spring Return Pneumatic Actuator
Brand: Bonomi Valves
SKU: BNM-8P0082LF

SKU: BNM-8P0082LF

Starting at $285.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"

Size1/4" to 4"

Max. Pressure600 WOG / 150 WSP

Body MaterialLead-Free Brass

Connection TypeThreaded (FNPT x FNPT)

PortFull Port

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	2-Way Ball Valve
Size	1/4" to 4"
Max. Process Temp	-4 to 366°F
Actuation	Spring Return (SR) Pneumatic
Brand	Bonomi Valves
Manufacturer Part #	BNM-8P0082LF

Materials & Construction

Body Material	Lead-Free Brass
Body Style	2 Way
Ball Material	Lead-Free Brass (SLT. Coated)
Seat Material	PTFE
Stem Packing	Viton
Stem Material	Lead-Free Brass
Stem Type	Blowout Proof

Performance

Max. Pressure	600 WOG / 150 WSP
Actuator Supply Pressure	Min. 80 psi and Max. 116 psi

Connections

Port	Full Port
Connection Type	Threaded (FNPT x FNPT)

Download Specification Sheet (PDF)
