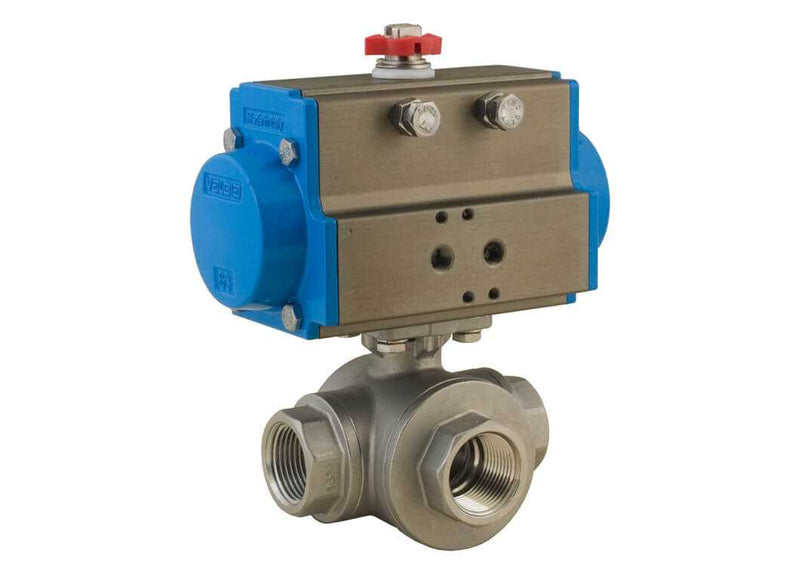

Bonomi 8P0139 Series - 3-Way, Stainless Steel, Standard Port, T-Port, NPT, Ball Valve with Double Acting Pneumatic Actuator.
SKU:
BNM-8P0139
Starting at
$343.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Size Range1/2" to 3"
Max. Pressure1000psi (1/2" - 1-1/4"), 800psi (1-1/2" - 3")
Body MaterialStainless Steel (CF8M)
Connection TypeThreaded (FNPT x FNPT X FNPT)
Port ConfigurationT-Port (Standard)
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 3-Way Ball Valve with Double Acting Actuator |
|---|---|
| Size Range | 1/2" to 3" |
| Temp Range | -4F to 450°F |
| Actuation | Double Acting (DA) Pneumatic |
| Brand | Bonomi Valves |
| Manufacturer Part # | BNM-8P0139 |
Materials & Construction
| Body Material | Stainless Steel (CF8M) |
|---|---|
| Body Style | 3-Way |
| Seat Material | RTFE |
| Ball Material | 316 Stainless Steel |
| Stem Type | Blowout Proof |
| Stem Material | 316 Stainless Steel |
Performance
| Max. Pressure | 1000psi (1/2" - 1-1/4"), 800psi (1-1/2" - 3") |
|---|---|
| Actuator Supply Pressure | Min. 80 psi and Max. 116 psi |
Connections
| Port Configuration | T-Port (Standard) |
|---|---|
| Connection Type | Threaded (FNPT x FNPT X FNPT) |
