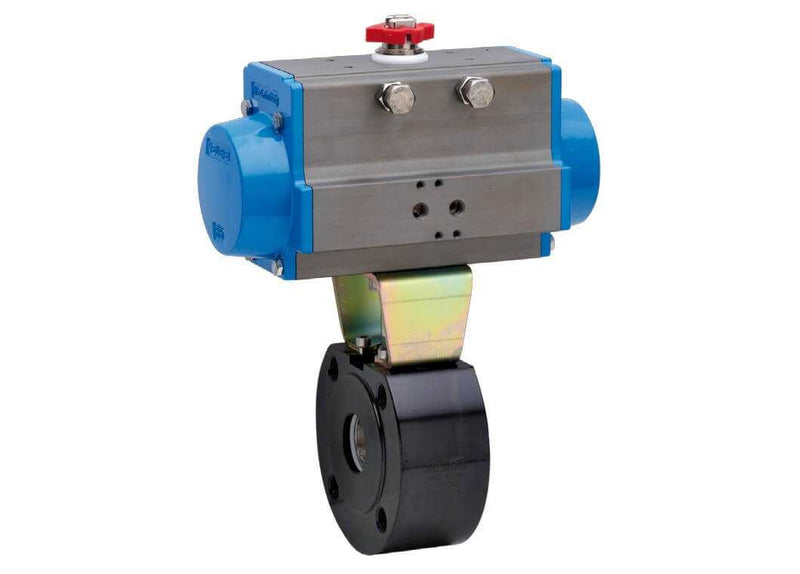

Bonomi 8P0175 Series - Ball Valve, Wafer Style, 2-Way, Carbon Steel, Flanged, Full Port, with Double Acting Pneumatic Actuator

Name: Bonomi 8P0175 Series - Ball Valve, Wafer Style, 2-Way, Carbon Steel, Flanged, Full Port, with Double Acting Pneumatic Actuator
Brand: Bonomi Valves
SKU: BNM-8P0175

SKU: BNM-8P0175

Starting at $374.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4" 5" 6"

Pressure Rating275 psi (Refer to P/T Chart)

Body MaterialCarbon Steel

End Connection150# Flanged

PortFull Port

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	2-Way Pneumatically Actuated Ball Valve
Design Type	Wafer Style
Air Supply Needed	80 PSI
Actuation Type	Double Acting(Fail In Place)
Brand	Bonomi Valves
Manufacturer Part #	BNM-8P0175

Materials & Construction

Body Material	Carbon Steel
Ball Material	CF8M Stainless Steel
Seat Material	R.P.T.F.E.
Packing Material	P.T.F.E.
Stem Design	Blowout Proof

Performance

Pressure Rating	275 psi (Refer to P/T Chart)
Temp. Rating	-4°F to +302°F

Connections

Port	Full Port
End Connection	150# Flanged

Standards & Certifications

See Specification Sheet

Download Specification Sheet (PDF)
