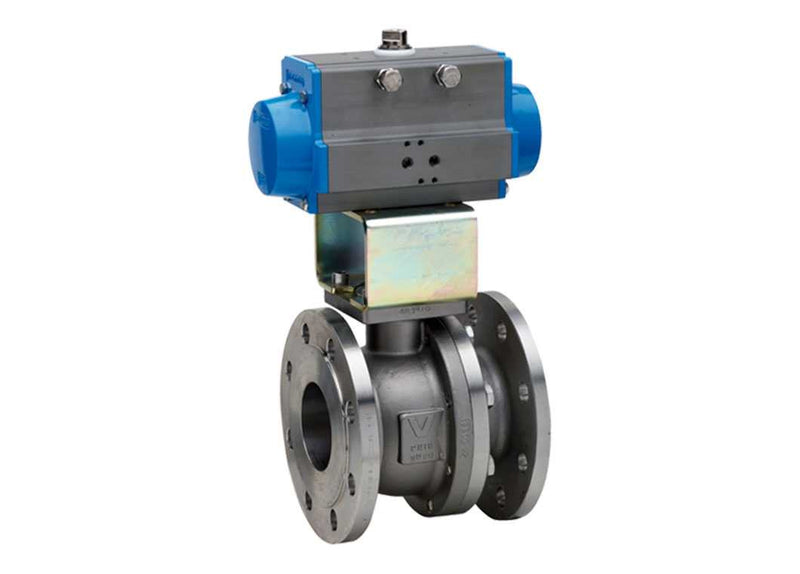

Bonomi 8P0177 Series - Stainless Steel, Full Port, Flanged, Ball Valve with Double Acting Pneumatic Actuator
SKU:
BNM-8P0177
Starting at
$560.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Pressure Rating275psi
Body MaterialStainless Steel
End Connection150# Flanged
PortFull Port
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Pneumatically Actuated Ball Valve |
|---|---|
| Design Type | Split Body |
| Air Supply Needed | A351-CF8M |
| Actuation Type | Double Acting (Fail in Place) |
| Brand | Bonomi Valves |
| Manufacturer Part # | BNM-8P0177 |
Materials & Construction
| Body Material | Stainless Steel |
|---|---|
| Ball Material | Stainless Steel |
| Seat Material | P.T.F.E. |
| Packing Material | P.T.F.E. |
| Stem Design | Blowout Proof |
Performance
| Pressure Rating | 275psi |
|---|---|
| Temp. Rating | -4F to 366F |
Connections
| Port | Full Port |
|---|---|
| End Connection | 150# Flanged |
Standards & Certifications
See Specification Sheet
