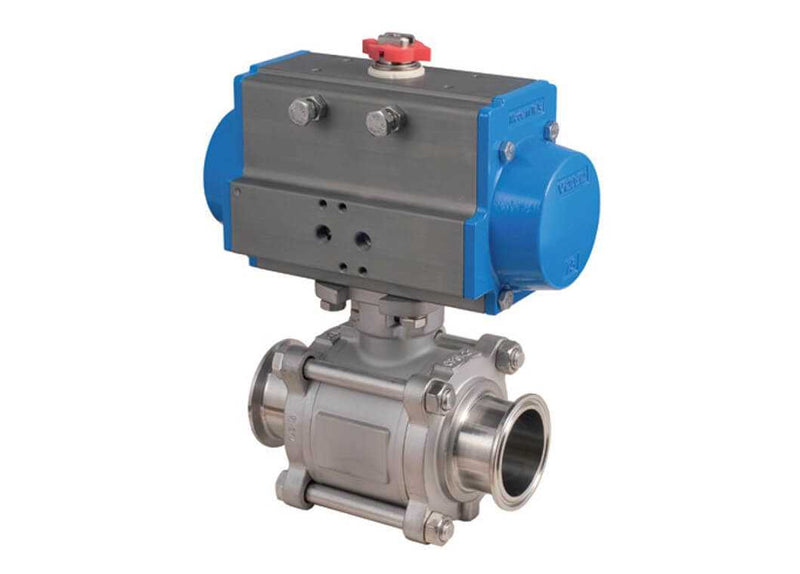

Bonomi 8P0771 Series - Sanitary Ball Valve, 3-Piece, Stainless Steel, Full Port, Tri-Clamp, Cavity Filled with Double Acting Actuator
SKU:
BNM-8P0771
Starting at
$371.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Pressure Rating1000 psi WOG (1/2" to 1" ) 800 psi WOG (1-1/2" to 2" ) 600 psi WOG (2-1/2" to 4" ) (Refer to P/T Chart)
Body Material316 Stainless Steel
End ConnectionN/A
PortFull Port
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Pneumatically Actuated Ball Valve |
|---|---|
| Design Type | 3-Piece |
| Air Supply Needed | 80 PSI |
| Actuation Type | Double Acting(Fail In Place) |
| Brand | Bonomi Valves |
| Manufacturer Part # | BNM-8P0771 |
Materials & Construction
| Body Material | 316 Stainless Steel |
|---|---|
| Ball Material | 316 Stainless Steel |
| Seat Material | P.T.F.E. |
| Packing Material | P.T.F.E. |
| Stem Design | Blowout Proof |
Performance
| Pressure Rating | 1000 psi WOG (1/2" to 1" ) 800 psi WOG (1-1/2" to 2" ) 600 psi WOG (2-1/2" to 4" ) (Refer to P/T Chart) |
|---|---|
| Temp. Rating | -20°F to 450°F (Refer to P/T Chart) |
Connections
| Port | Full Port |
|---|---|
| End Connection | N/A |
Standards & Certifications
See Specification Sheet
