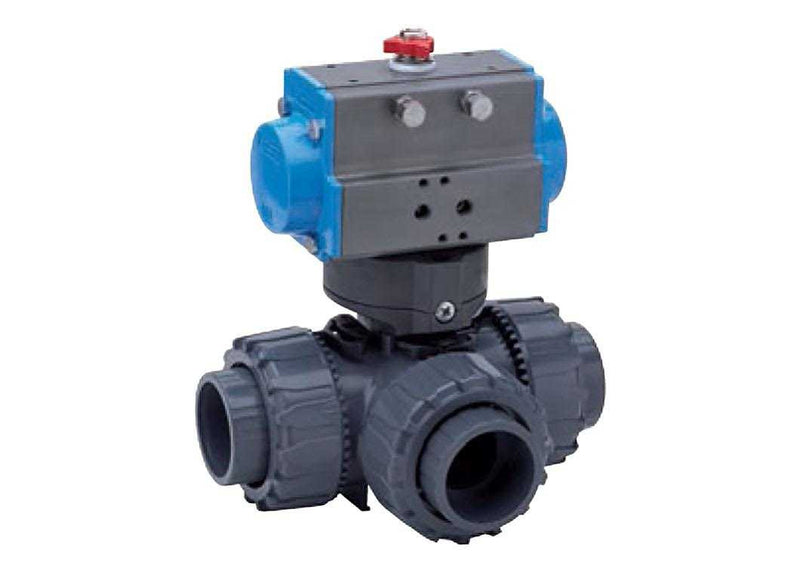

Bonomi 8P3TDAPVC Series - PVC, T-Port, Full Port, Ball Valve with Double Acting Pneumatic Actuator
SKU:
BNM-8P3TDAPVC
Starting at
$489.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Pressure Rating232 PSI at 73F
Body MaterialPVC
End ConnectionComes w/ Threaded and Socket Weld Connections
PortingT-Port
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 3-Way Pneumatically Actuated Ball Valve |
|---|---|
| Act. Temp Range | (-4F to +185F), high (-4F to +302F), low (-40F to +185F) |
| Design Type | Multi-Port |
| Air Supply Needed | 80 PSI |
| Actuation Type | Double Acting |
| Brand | Bonomi Valves |
| Manufacturer Part # | BNM-8P3TDAPVC |
Materials & Construction
| Body Material | PVC |
|---|---|
| Ball Material | PVC |
| Seat Material | P.T.F.E. |
| Packing Material | None. O-Rings Present in PVC Valves |
| Stem Design | Non-Blowout Proof |
Performance
| Pressure Rating | 232 PSI at 73F |
|---|---|
| V-Temp. Rating | 73F |
Connections
| Porting | T-Port |
|---|---|
| Port | Full Port |
| End Connection | Comes w/ Threaded and Socket Weld Connections |
Standards & Certifications
See Specification Sheet
