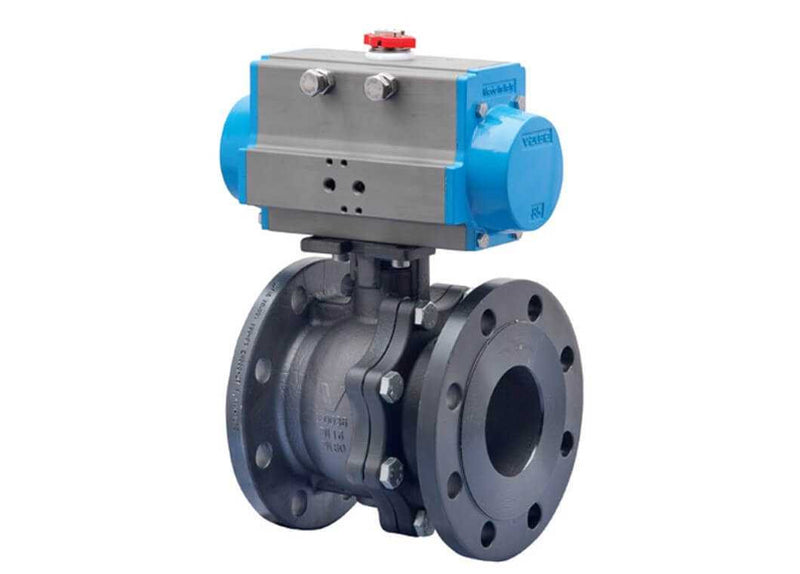

Bonomi 8P766001 Series - Carbon Steel, Full Port, Flanged, Ball Valve w/ Double Acting Pneumatic Actuator
SKU:
BNM-8P766001
Starting at
$507.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Pressure Rating285 PSIG
Body MaterialCarbon Steel
End Connection150# Flanged
PortFull Port
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Pneumatically Actuated Ball Valve |
|---|---|
| Design Type | 2-Piece |
| Air Supply Needed | 80 PSI |
| Actuation Type | Double Acting (Fail in Place) |
| Brand | Bonomi Valves |
| Manufacturer Part # | BNM-8P766001 |
Materials & Construction
| Body Material | Carbon Steel |
|---|---|
| Ball Material | A216-316, A351-CF8M |
| Seat Material | P.T.F.E. |
| Packing Material | P.T.F.E. |
| Stem Design | Blowout Proof |
Performance
| Pressure Rating | 285 PSIG |
|---|---|
| Temp. Rating | -4F to 366F |
Connections
| Port | Full Port |
|---|---|
| End Connection | 150# Flanged |
Standards & Certifications
See Specification Sheet
