Save 14%

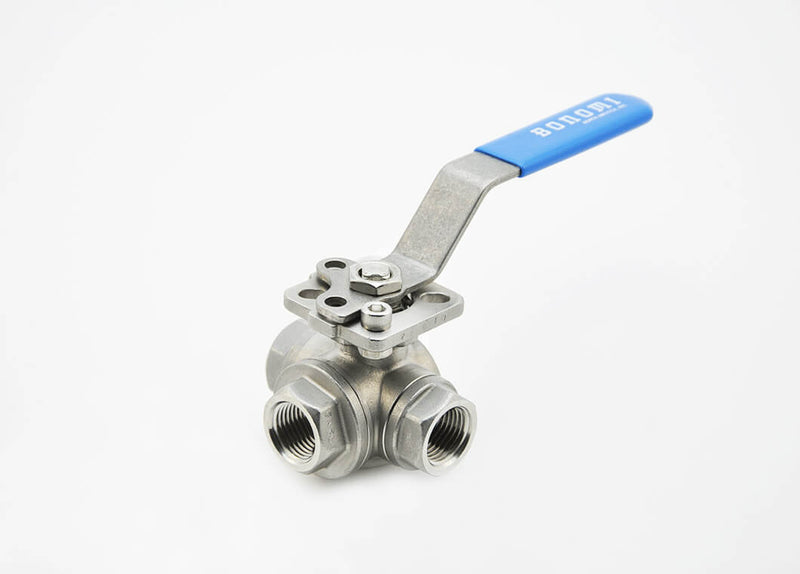

Bonomi 955N Series- 3-Way, Stainless Steel Body, NPT, T-Port/Standard, Ball Valve
SKU:
BNM-955N
Starting at
$113.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Size1/2" to 3"
Pressure Class1000 psi (1/4" to 1"), 800 psi (1-1/4" to 3")
Body MaterialStainless Steel (CF8M)
Connection TypeThreaded (FNPT x FNPT x FNPT)
PortStandard Port
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Item | 3 Way Ball Valve (T-Port) |
|---|---|
| Size | 1/2" to 3" |
| Mounting Pad | ISO 5211 |
| Brand | Bonomi Valves |
| Manufacturer Part # | BNM-955N |
Materials & Construction
| Body Material | Stainless Steel (CF8M) |
|---|---|
| Body Style | 3 Way |
| Ball Material | Stainless Steel SS316 |
| Handle Material | Stainless Steel SS304 |
| Handle Type | Lever (Locking Handle) |
| Stem Material | Stainless Steel SS316 |
| Seat Material | R.T.F.E |
| Stem Type | Blowout Proof (Self Adjusting Packing) |
Performance
| Pressure Class | 1000 psi (1/4" to 1"), 800 psi (1-1/4" to 3") |
|---|---|
| Temp. Rating | -4 to 450°F |
Connections
| Connection Type | Threaded (FNPT x FNPT x FNPT) |
|---|---|
| Port | Standard Port |
