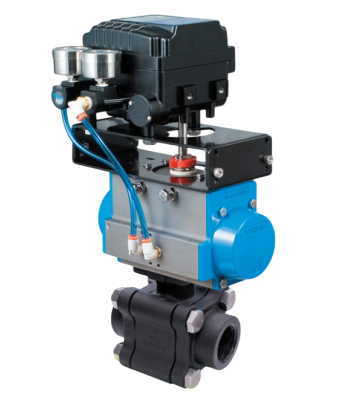

Bonomi EP630LLV*DA 30°/ 60°/ 90° V-Port Ball Valve, 3 Piece Direct Mount, 2-Way, Carbon Steel, NPT Threaded, Full Port, with Double Acting Pneumatic Actuator and Electro Pneumatic ENP-B 4-20 mA psi Positioner
SKU:
BNM-EP630LLV369DA
Starting at
$1,199.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Size1/2" to 4"
Max. Pressure250 psi steam
Body MaterialCarbon Steel
Connection TypeNPT Threaded
PortFull Port
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Ball Valve (V-Port) |
|---|---|
| Size | 1/2" to 4" |
| Ball Options | 30>< , 60>< , 90>< |
| Max. Process Temp. | -4> |
| Positioner | Electro Pneumatic ENP-B 4-20 mA psi Positioner |
| Actuation | Double Acting (DA) pneumatic |
| Brand | Bonomi Valves |
| Manufacturer Part # | BNM-EP630LLV369DA |
Materials & Construction
| Body Material | Carbon Steel |
|---|---|
| Body Style | 3-Piece |
| Seat Material | TFM-4215 |
| Ball Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
Performance
| Max. Pressure | 250 psi steam |
|---|---|
| Actuator Supply Pressure | Min. 80 psi and Max. 116 psi |
Connections
| Port | Full Port |
|---|---|
| Connection Type | NPT Threaded |
