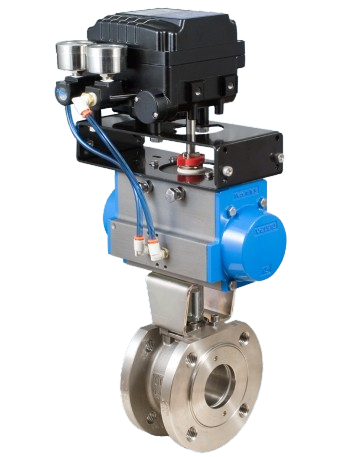

Bonomi EP720370V**DA 30°/ 60°/ 90° V-Port Ball Valve, 2-Way, Stainless Steel, ANSI 150 Flanged, Fire-Safe Wafer Style, with Double Acting Pneumatic Actuator and Electro-Pneumatic ENP-B 4-20mA Positioner
SKU:
EP720370V**DA
Made in Italy
Starting at
$1,339.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Size1/2" to 6"
Actuator Supply PressureMin. 80 psi and Max. 116 psi
Body Material316 Stainless Steel
Connection TypeANSI 150 Flange
PortFull Port
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Ball Valve (V-Port) |
|---|---|
| Size | 1/2" to 6" |
| Ball Options | 30>< - 60>< , 60>< , 90>< |
| Max. Process Temp. | -4> |
| Positioner | Electric ENP-B 4-20mA Positioner |
| Actuation | Double Acting (DA) pneumatic |
| Brand | Bonomi Valves |
| Manufacturer Part # | EP720370V**DA |
| Country of Origin | Made in Italy |
Materials & Construction
| Body Material | 316 Stainless Steel |
|---|---|
| Seat Material | PTFE |
| Ball Material | 316 Stainless Steel |
| Stem Type | Blowout Proof, Antistatic Device |
Performance
| Actuator Supply Pressure | Min. 80 psi and Max. 116 psi |
|---|
Connections
| Port | Full Port |
|---|---|
| Connection Type | ANSI 150 Flange |
