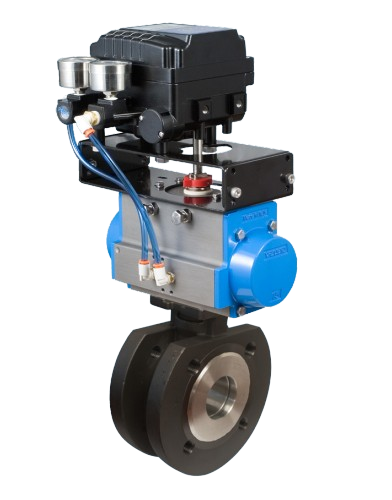

Bonomi EP724102V**DA 30°/ 60°/ 90° V-Port Ball Valve, Direct Mount, 2-Way, Carbon Steel, ANSI 150 Flanged, Wafer Style, with Double Acting Pneumatic Actuator and Electric ENP-B 4-20mA Positioner
SKU:
EP724102V**DA
Made in Italy
Starting at
$1,329.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Size1" to 4"
Actuator Supply PressureMin. 80 psi and Max. 116 psi
Body MaterialCarbon Steel
Connection TypeANSI 150 Flange
PortFull Port
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Ball Valve (V-Port) |
|---|---|
| Size | 1" to 4" |
| Ball Options | 30>< - 60>< , 60>< , 90>< |
| Max. Process Temp. | -4> |
| Positioner | Electric ENP-B 4-20mA Positioner |
| Actuation | Double Acting (DA) pneumatic |
| Brand | Bonomi Valves |
| Manufacturer Part # | EP724102V**DA |
| Country of Origin | Made in Italy |
Materials & Construction
| Body Material | Carbon Steel |
|---|---|
| Seat Material | PTFE |
| Ball Material | A351-CF8M Stainless Steel |
| Stem Type | Blowout Proof, Antistatic Device |
Performance
| Actuator Supply Pressure | Min. 80 psi and Max. 116 psi |
|---|
Connections
| Port | Full Port |
|---|---|
| Connection Type | ANSI 150 Flange |
