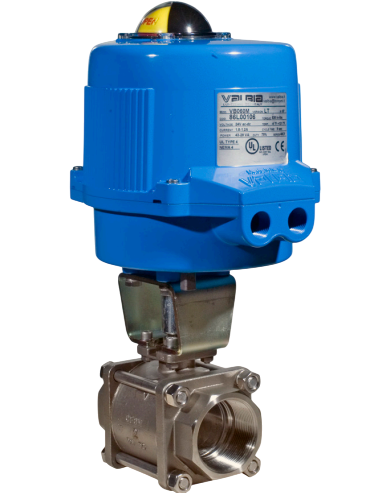

Bonomi M8E710190V**-0* 30°/ 60°/ 90° V-Port Ball Valve, 2-Way, Stainless Steel , Full Port, NPT Threaded, with Metal Electric Actuator with Positioner OR Positioner with Battery Backup - For Steam
SKU:
BNM-M8E710190V**-**
Starting at
$1,090.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Size1/2" to 4"
Max. Pressure1000 psi; 150 psi steam
Body MaterialCF8M Stainless Steel
Connection TypeNPT Threaded
PortFull Port
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Electrically Actuated Ball Valve (V-Port) |
|---|---|
| Size | 1/2" to 4" |
| Ball Options | 30>< - 60>< , 60>< , 90>< |
| Max. Process Temp. | -4> |
| Available Actuator Package | 24V AC/DC |
| Duty Cycle | 75% Duty Cycle |
| Brand | Bonomi Valves |
| Manufacturer Part # | BNM-M8E710190V**-** |
Materials & Construction
| Body Material | CF8M Stainless Steel |
|---|---|
| Seat Material | PTFE |
| Ball Material | AISI 304-CF8M |
| Stem Type | Blowout Proof, Antistatic Device |
| Stem Material | 304 Stainless Steel |
Performance
| Max. Pressure | 1000 psi; 150 psi steam |
|---|---|
| NEMA Rating | NEMA 4 |
Connections
| Port | Full Port |
|---|---|
| Connection Type | NPT Threaded |
Standards & Certifications
See Specification Sheet
