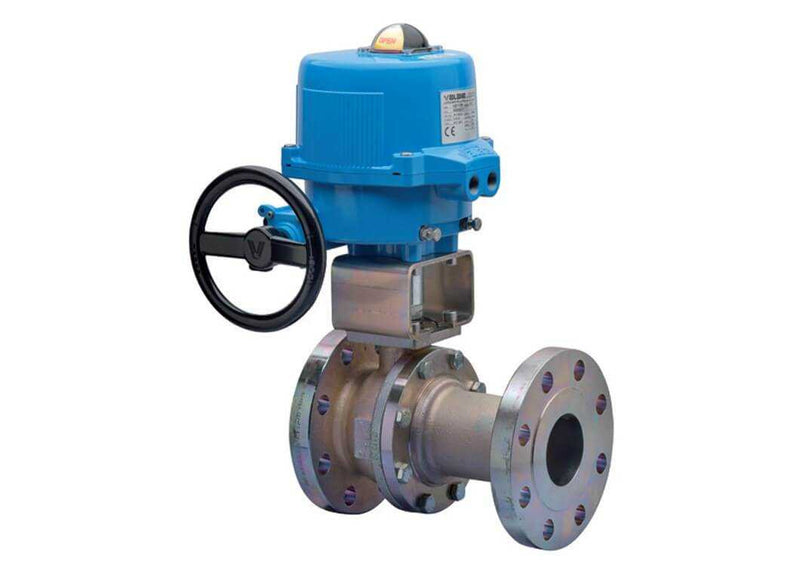

Bonomi M8E761031-00 Series - Ball Valve, Fire Safe, 2 Piece, 2-Way, Carbon Steel, Flanged, Full Port, with Metal Electric Actuator
SKU:
BNM-M8E761031-00
Starting at
$801.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Pressure RatingANSI 300 (Refer to P/T Chart)
Body MaterialCarbon Steel
End Connection300# Flanged
PortFull Port
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Electrically Actuated Ball Valve |
|---|---|
| Design Type | Split Body |
| Control | On/Off |
| Available Voltages | 100-240V - AC, 24V - AC/DC, 12V - AC/DC |
| Actuation Type | Electric (Fail in Place) |
| Brand | Bonomi Valves |
| Manufacturer Part # | BNM-M8E761031-00 |
Materials & Construction
| Body Material | Carbon Steel |
|---|---|
| Ball Material | 304 Stainless Steel |
| Seat Material | R.P.T.F.E. |
| Packing Material | P.T.F.E. |
| Stem Design | Blowout Proof |
Performance
| Pressure Rating | ANSI 300 (Refer to P/T Chart) |
|---|---|
| Temp. Rating | -4°F to +131°F |
| NEMA Rating | NEMA 4 |
Connections
| Port | Full Port |
|---|---|
| End Connection | 300# Flanged |
Standards & Certifications
See Specification Sheet
