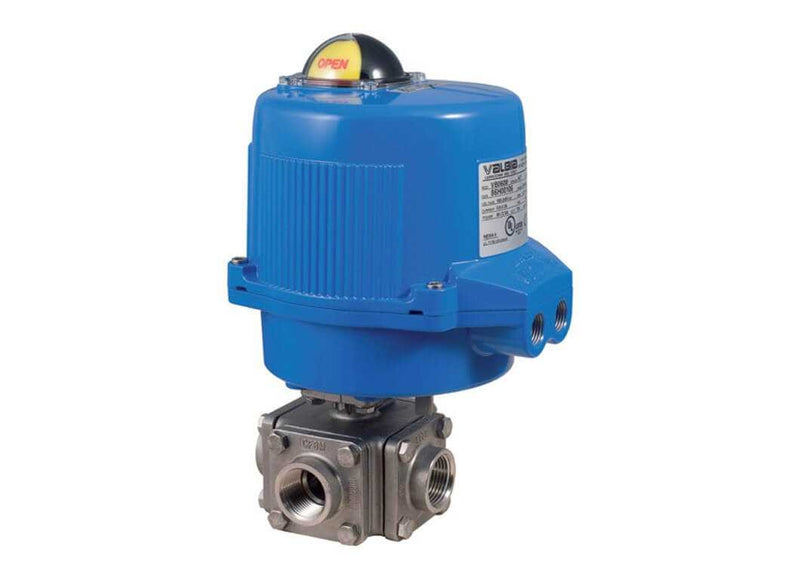

Bonomi ME97T-00 Series - Ball Valve, T-Port, Block Body, Stainless Steel, FNPT Threaded, Full Port, with Metal Electric Actuator
SKU:
BNM-ME97T-00
Starting at
$939.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Pressure Rating1/2" to 1" - 1000 psi, 1-1/4" to 2" - 800 psi, 2-1/2" to 3" - 600 psi, 4" - 300 psi (Refer to P/T Chart)
Body MaterialCF8M Stainless Steel
End ConnectionFNPT Threaded
PortingT-Port
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 3-Way Electrically Actuated Ball Valve |
|---|---|
| Design Type | Block Body |
| Control | On/Off |
| Available Voltages | 12V/24V AC/DC and 100-240V AC |
| Actuation Type | Electric (Fail in Place) |
| Brand | Bonomi Valves |
| Manufacturer Part # | BNM-ME97T-00 |
Materials & Construction
| Body Material | CF8M Stainless Steel |
|---|---|
| Ball Material | 316 Stainless Steel |
| Seat Material | Carbon Filled P.T.F.E. |
| Packing Material | P.T.F.E. |
| Stem Design | Blowout Proof |
Performance
| Pressure Rating | 1/2" to 1" - 1000 psi, 1-1/4" to 2" - 800 psi, 2-1/2" to 3" - 600 psi, 4" - 300 psi (Refer to P/T Chart) |
|---|---|
| Temp. Rating | -4°F to +131°F |
| NEMA Rating | NEMA 4 |
Connections
| Porting | T-Port |
|---|---|
| Port | Full Port |
| End Connection | FNPT Threaded |
Standards & Certifications
See Specification Sheet
