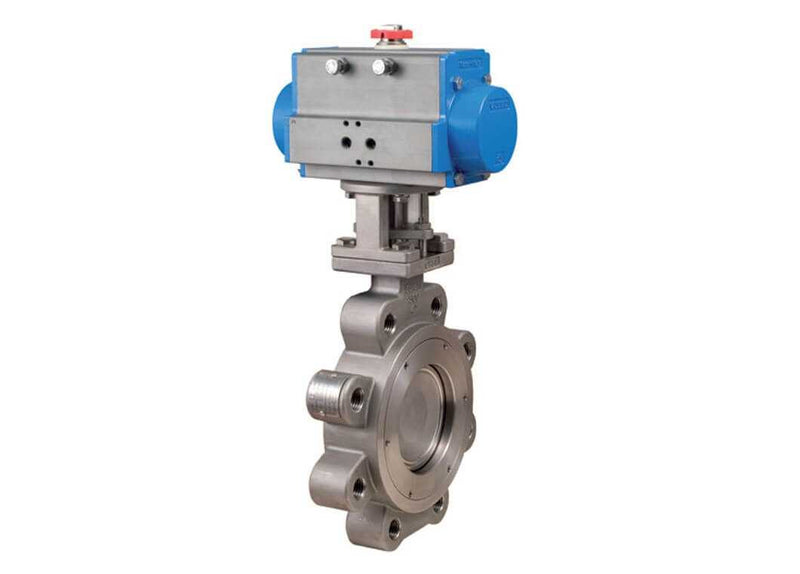

Bonomi SR9101 Series - Butterfly Valve, High Performance, Lug Style, Stainless Steel, with Spring Return Pneumatic Actuator
SKU:
BNM-SR9101
Starting at
$925.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Pressure ClassANSI 150
Body MaterialCF8M Stainless Steel
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | Pneumatically Actuated Butterfly Valve |
|---|---|
| Air Supply Needed | 80 PSI |
| Actuation Type | Spring Return |
| Brand | Bonomi Valves |
| Manufacturer Part # | BNM-SR9101 |
Materials & Construction
| Body Style | Lug |
|---|---|
| Body Material | CF8M Stainless Steel |
| Disc Material | CF8M Stainless Steel |
| Seat Material | Carbon Filled P.T.F.E. |
| Packing Material | P.T.F.E. |
Performance
| Temp. Rating | -4> |
|---|---|
| Pressure Class | ANSI 150 |
| Pressure Rating | 275 psi(Refer to P/T Chart) |
Standards & Certifications
See Specification Sheet
