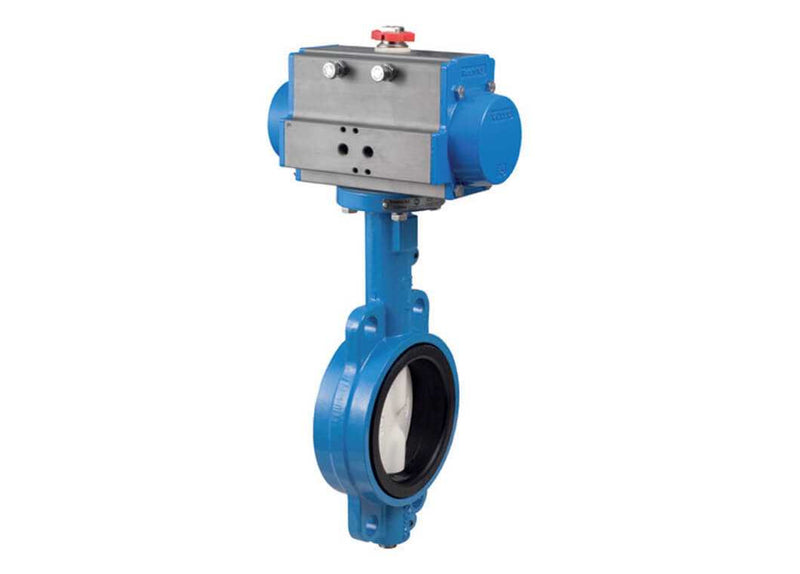

Bonomi SRN500S Series - Cast Iron, Wafer Style, Butterfly Valve with Spring Return Pneumatic Actuator

Name: Bonomi SRN500S Series - Cast Iron, Wafer Style, Butterfly Valve with Spring Return Pneumatic Actuator
Brand: Bonomi Valves
SKU: BNM-SRN500S

SKU: BNM-SRN500S

Starting at $427.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

1-1/2" 2" 2-1/2" 3" 4" 5" 6" 8" 10"

Select a size above to add to cart.

Pressure Rating200 psi (Refer to P/T Chart)

Body MaterialCast Iron

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Pneumatically Actuated Butterfly Valve
Air Supply Needed	80 PSI
Actuation Type	Spring Return
Brand	Bonomi Valves
Manufacturer Part #	BNM-SRN500S

Materials & Construction

Body Style	Wafer
Body Material	Cast Iron
Disc Material	Stainless Steel
Seat Material	EPDM
Packing Material	N/A

Performance

Pressure Rating	200 psi (Refer to P/T Chart)
Temp. Rating	-30°F TO 250°F (Refer to P/T Chart)
Pressure Class	N/A
NEMA Rating	N/A

Standards & Certifications

See Specification Sheet

Download Specification Sheet (PDF)
