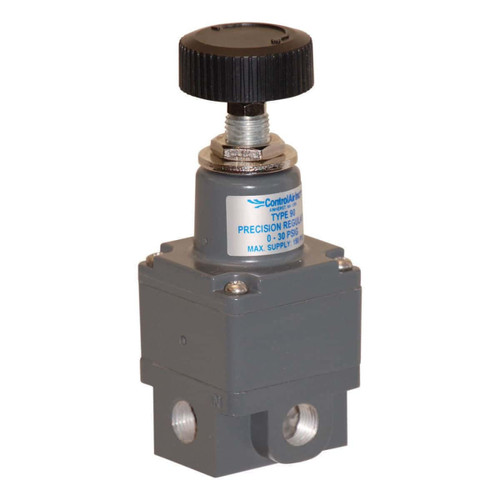

ControlAir Type 90 Series Miniature Precision Air Pressure Regulator, 429-806-015, 90-XA, 0.70 - 30 Psig (0.05 - 2.1 Bar), Manifold
Brand : ControlAir
MSRP: $155.85
$126.99
(You save
$28.86
)
- SKU:
- 429-806-015
- Processing Time:
- 14
- Specific Date:
- Days
ControlAir Type 90 Series 429-806-015, 90-XA Miniature Precision Air Pressure Regulator
Features
- High resolution adjustment of set pressure
- Precision Control Highly accurate air pressure regulation in a small package
- Pressure ranges up to 120 psig (8 BAR)
- Compact & Lightweight
- Available in NPT and BSP porting
- Two gauge ports and reversible bracket allow front or back mounting
Compact, Lightweight & Precise Regulation
This pressure regulator provides the highest level of regulation accuracy and repeatability available in a compact, lightweight housing. A force balanced pilot control maintains output pressure to within 0.05 psig (3.44 millibar) with minimal drift over time. The Type 90 is ideal for applications that require exact pressure control and substantial flow capacity under variable operating conditions and limited space.
Technical Specifications
Port
Manifold
Output Range
0.70 - 30 Psig (0.05 - 2.1 Bar)
Flow Capacity
14 scfm (396 NL/min)
Exhaust Capacity
7 scfm (199 Nl/min)
Sensitivity
1/4" in. (6.4 mm)
Max. Supply Pressure
150 psig (10 bar)
Supply Pressure Sensitivity
0.5 psig (.034 bar) for a 100 psig (6.9 bar) change
Air Consumption
6.0 scfh max. at 150 psig (170 NL/hr max. at 10 bar supply)
Air Consumption
6.0 scfh max. at 150 psig (170 NL/hr max. at 10 bar supply)
Repeatability
±0.3% of span
Ambient Temperature Limits
0° to +160°F '(-18° to 71°C)
Weight
0.35 lbs (0.16 kg)
Part Number
429-806-015
