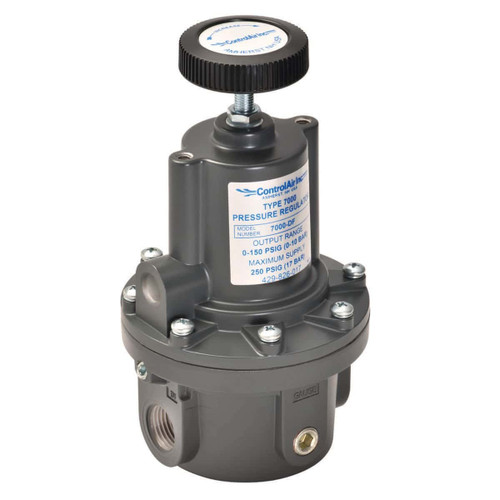

ControlAir Type 7000 Series High Flow Precision Air Pressure Regulator, 429-826-104, 7000-BBN, 0 - 10 Psig (0 - 0.7 Bar), 1/4" National Pipe Thread, Non-Relieving

ControlAir Type 7000 429-826-104, 7000-BBN High Flow Precision Air Pressure Regulator

Features

• 1/4", 1/2", or 3/4" NPT Porting
• Two 1/4" NPT Gauge Ports
• High Forward Flow Allows flows up to 250 scfm.
• Sensitive: Senses output pressure deviations to within 1/2" water column pressure.
• Stable Output: Isolated control chamber prevents output variation and vibration during flow conditions.
• Balanced Supply Valve: Virtually eliminates changes to supply pressure variation.

Materials of Construction

• Housing: Diecast Aluminum Alloy
• Bolting: Zinc Plated Steel
• Internal Components: Stainless Steel, Plated Steel, Brass, Aluminum
• Elastomers: Nitrile
• Knob: Phenolic Plastic

For Applications that Require High Flow Capacity

The Type 7000 regulator provides high flow capacity while maintaining high accuracy, low droop and precise adjustment during variable high flow conditions. Multiple port size options (up to 3/4″) and rugged construction make the Type 7000 regulator suitable for many applications.

The Type 7000 utilizes an isolated control chamber to minimize output variation and vibration/honking during flow conditions. An integral aspirator tube helps maintain downstream pressure by compensating for pressure droop during flow conditions. The balanced supply valve virtually eliminates changes to supply pressure variation.

View Technical Specification Sheet Here
