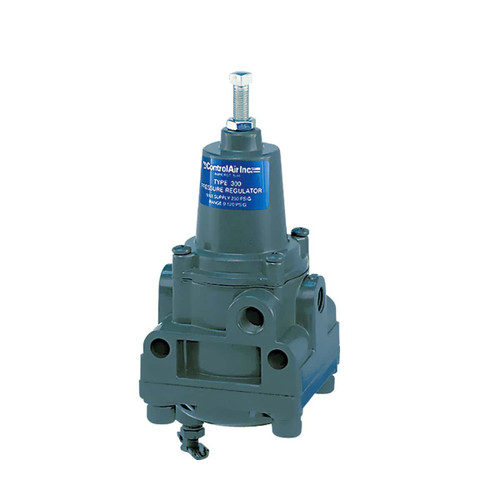

ControlAir Type 300 Series Air Filter Regulator, 429-841-449, 310-BBEK, 0 - 60 Psig (0 - 4.1 Bar), 1/4" National Pipe Thread, Tapped Exhaust, Knob

ControlAir Type 310 Series 429-841-449, 310-BBEK NACE Filter Regulator

Series Features

• Corrosion-Resistant and NACE Compliant Construction
  Types 300 and 320 feature aluminum die-castings, finished with chromate and baked epoxy. Materials in the Type 310 meet NACE MR-01-75 requirements.
• Depth Filter
  Units come equipped with high capacity 40 micron depth filter housed in dripwell.
• Two Outlet Connections
  Provides piping versatility

Regulator Features

• Stable Output and Repeatability
  Provides constant control undervariable flow rates and supply pressures.
• Low Droop At High Flow Levels
  Aspirator design helps maintain set pressure at higher flow levels
• Tight Shutoff
  A soft, rubberized valve provides a positive shutoff and compensates for dirt and other foreign matter.
• Low Air Consumption
  Decreases operating cost.
• Tapped Exhaust
  Allows captured exhaust.

Type 310 Series Rugged & Reliable Instrument Air Filtration & Regulator

• Type 310 NACE Filter Regulator
  This unit incorporates all of the operating features of the Type 300 filter regulator, but is constructed of materials that meet NACE specification #MR-01-75 for sulfide stress cracking. Designed specifically for corrosive sour gas environments, the Type 310 NACE is ideal for oil field applications.

Materials

• Type 310

  • Body: Diecast Aluminum with Baked
  • Epoxy Finish
  • Filter: Sintered Polyethylene
  • Pintle: 316 Stainless Steel
  • Drain Valve: Aluminum
  • Diaphragm, Gasket, Pintle: Viton®
  • Low Temperature Option: Silicone and Nitrile
  • Spring: 316 Stainless Steel
  • Trim: Heat treated plated steel and stainless stee

View Technical Specification Sheet Here
