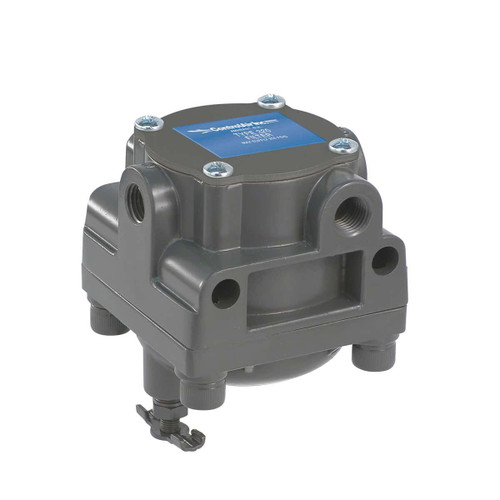

ControlAir Type 320 Series Pneumatic Air Filter, 429-845-016, 320-BXF, 1/4" NPT, 5 Micron Filter
SKU:
429-845-016
Made in the United States
$78.99
Price on request
Available to Order
Available Models
Standard
5μ Filter
Port Size1/4" NPT
Max. Supply Pressure250 psig (17 bar)
Body MaterialsAluminum
Ambient Temperature Limits-20° to 160°F (-29° to 71°C), -62° to 194°F (-52° to 90°C)
Typically ships in 14 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Output Range | N/A |
|---|---|
| Exhaust Capacity | N/A |
| Air Consumption | N/A |
| Cv | 0.4 |
| Sensitivity | N/A |
| Mounting | Pipe, Through Body, Bracker |
| Filter | 40 micron, 5 micron |
| Part Number | 429-845-016 |
| 5 Micron Filter | Yes |
| Brand | ControlAir |
| Manufacturer Part # | 429-845-016 |
| Size | 1/4" |
| Country of Origin | Made in the United States |
Materials & Construction
| Body Materials | Aluminum |
|---|---|
| Other Materials | Sintered Polyethylene, Nitrile, Silicone, Plated Steel, Brass |
Performance
| Flow Capacity (at 100 psig; 20 psig outlet) | 20 scfm (566 Nl/min) |
|---|---|
| Max. Supply Pressure | 250 psig (17 bar) |
| Ambient Temperature Limits | -20° to 160°F (-29° to 71°C), -62° to 194°F (-52° to 90°C) |
Connections
| Port Size | 1/4" NPT |
|---|
Dimensions & Weight
| Weight | 1.3 lb (0.59 kg) |
|---|
Overview
ControlAir Type 320 Series 429-845-016, 320-BXF Pneumatic Air Filter
Features:
- 1/4” Ports (For ½” Ports Please See Our Type 345)
- 5 Micron Filter Option
- Stainless Steel Trim Option
Options & Features (See Specification Sheet For Full List):
Type 320 Pneumatic Air Filter
The Type 320 Filter unit is a 40-micron depth filter that removes dirt, moisture and other particles from air and gas lines. Robustly constructed of die-cast aluminum with a baked epoxy finish, this unit stands up in corrosive operating conditions. This filter is an economical alternative for air supply line applications that don’t require a pressure reducing regulator. To add an integral pressure regulator, please see our Type 300 series.
