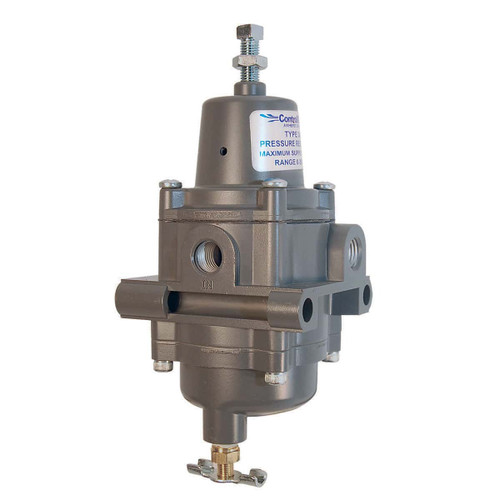

ControlAir Type 340 Series Air Pressure Regulator, 429-845-073, 340-DCE, 0 - 120 Psig (0 - 8.3 Bar), 1/4" National Pipe Thread, Tapped Exhaust
Brand : ControlAir
MSRP: $164.20
$159.99
(You save
$4.21
)
- SKU:
- 429-845-073
- Size Dropdown:
- True
- Processing Time:
- 14
- Specific Date:
- Days
ControlAir Type 340 Series 429-845-073, 340-DCE Air Pressure Regulator
Features:
- ¼” & ½” Port Sizes
- ATEX & EAC TR-CU Compliant
- Panel Mount Option Available
- Low Temperature Option: Down to -61°F
Options & Features (See Specification Sheet For Full List):
Type 340 Air Pressure Regulator
The Type 340 Air Pressure Regulator is designed to provide accurate, constant control under variable flow rates and supply pressure. Compact and lightweight housing allows this unit to be mounted in applications where space is limited. Its durable construction withstands long term installation in harsh environments. This regulator is available in both ¼” and ½” port size to accommodate a wide range of flow requirements. See our Type 330 Air Filter Regulator for a built-in filter capability.
Technical Specifications
Port Size
1/2" NPT
Output Range
0 - 120 Psig (0 - 8.3 Bar)
Max. Flow Capacity- 1/2" Ports
150 scfm (4, 247 Nl/min)
Max. Flow Capacity- 1/4" Ports
33 scfm (934 Nl/min)
Max. Supply Pressure
250 psig (17 bar)
Ambient Temperature Limits
0° to 160°F (-18° to 71°C)
Cv Value
0.5, 2.5
Exhaust Capacity
0.1 scfm (2.83 Nl/min)
Sensitivity
1 in. (25.4 mm)
Air Consumption
Less than 5 scfh (2.5 Nl/min)
Supply Pressure Sensitivity
Less than 0.25 psig (0.017 bar) for 25 psig (1.7 bar) change, Less than 0.5 (0.035 bar) psig for 25 psig (1.7 bar) change
Mounting
Pipe, Bracket, Through Body
Operating Media
Air, Inert Gas, Sweet Natural Gas
Weight
1.15 lbs (0.52 kg), 1.38 lbs (0.68 kg)
Body Materials
Diecast Aluminum Alloy
Other Materials
Nitrile Elastomer, Nylon Fabric, Brass, Zinc Plated Steel, Acetal
Part Number
429-845-073
Tapped Exhaust
Yes
