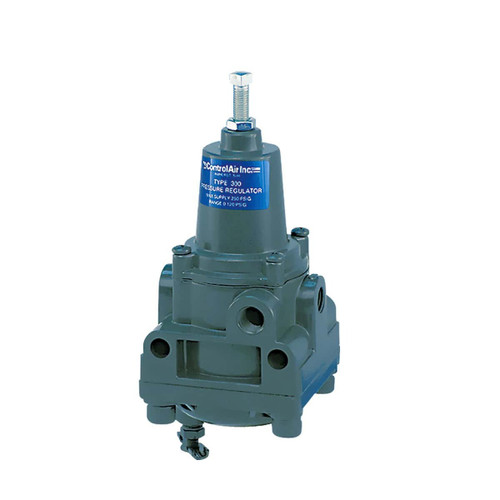

ControlAir Type 300 Air Filter Regulator, 429-849-062, 300-BDNV, 0 - 10 Psig 0 - .7 Bar), 1/4" National Pipe Thread, Non Relieving, Viton Elastomers
Brand : ControlAir
MSRP: $133.95
$130.99
(You save
$2.96
)
- SKU:
- 429-849-062
- Size Dropdown:
- True
- Processing Time:
- 14
- Specific Date:
- Days
ControlAir Type 300 Series 429-849-062, 300-BDNV Air Filter Regulator
Series Features
- Corrosion-Resistant and NACE Compliant Construction
Types 300 and 320 feature aluminum die-castings, finished with chromate and baked epoxy. Materials in the Type 310 meet NACE MR-01-75 requirements. - Depth Filter
Units come equipped with high capacity 40 micron depth filter housed in dripwell. - Two Outlet Connections
Provides piping versatility
Regulator Features
- Stable Output and Repeatability
Provides constant control undervariable flow rates and supply pressures. - Low Droop At High Flow Levels
Aspirator design helps maintain set pressure at higher flow levels - Tight Shutoff
A soft, rubberized valve provides a positive shutoff and compensates for dirt and other foreign matter. - Low Air Consumption
Decreases operating cost. - Tapped Exhaust
Allows captured exhaust.
Type 300 Series Rugged & Reliable Instrument Air Filtration & Regulator
- Type 300 Filter Regulator
The Type 300 Instrument Air Filter Regulator is designed to provide clean, accurate air pressure to instruments, valves, and other automatic control equipment. This filter regulator has been proven to provide accurate operating characteristics under variable conditions. Durable materials and a standard epoxy paint finish provide long lasting corrosion resistance in harsh industrial environments. The Type 300 is a quality unit that is ideal as an economical alternative for control of process applications.
Materials
- Type 300
- Body: Diecast Aluminum Alloy, Chromate and Baked Epoxy Finish
- Filter: Sintered Polyethylene
- Diaphragm: Nitrile Elastomer and Nylon Fabric (Viton® optional)
- Low Temperature Option: Silicone and Nitrile
- Valve Seat Plug: Nitrile Elastomer (Viton® optional)
- Additional Materials: Brass, Zinc Plated Steel, Acetal
Technical Specifications
Port Size
In/Out/Gauge: 1/4" NPT
Output Ranges
0-10 psig (0-.7 bar)
Maximum Supply Pressure
250 psig (17 BAR)
Mounting
Pipe, panel, bracket or through body
Filter
40 micron (optional 5 micron)
Flow Capacity
22 scfm at 100 psig supply with 20 psig output
Exhaust Capacity
0.1 scfm with downstream pressure 5 psig above set point
Sensitivity
1" of water
Air Consumption
Less than 5 scfh
Effect of Supply Pressure Variation
Less than 0.2 psig for 25 psig change
Temperature Limits
0° to 160° F (-18° C to 71° C)
Low Temperature Option (J): -62° to 194° F (-52° to 90° C)
Weight
1.6 lbs
Cv
0.4
Part Number
429-849-062
Non Relieving
Yes
Viton Elastomers
Yes
