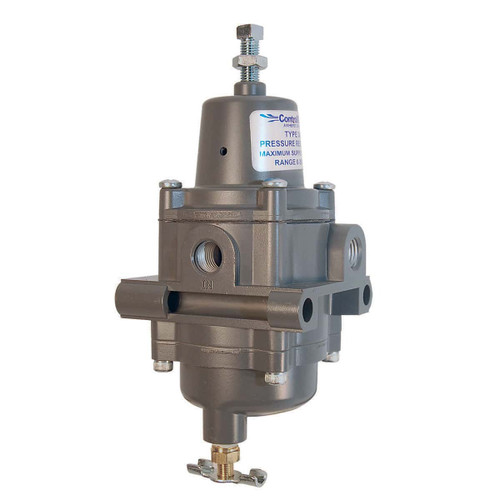

ControlAir Type 335 Series NACE Air Filter Regulator, CA-335-030-021-1/4-in, Type 335, 0 - 120 Psig, 1/4" National Pipe Thread
Brand : ControlAir
Starting At:
$237.99
- SKU:
- CA-335-030-021-1/4-in
- Size Dropdown:
- True
- Processing Time:
- 14
- Specific Date:
- Days
ControlAir Type 335 Series CA-335-030-021-1/4-in, NACE Air Filter Regulator
Features:
- NACE MR-0175 Compliant
- 40 or 5 Micron Filter
- Non-Relieving Diaphragm Available
Options & Features (See Specification Sheet For Full List):
Type-335 NACE Filter Regulator
The Type 335 NACE Air Filter Regulator is constructed to meet NACE MR-0175. This unit is perfect for oilfield equipment where sulfide stress cracking may be at risk. With Viton elastomers and stainless-steel trim this unit is capable of filtering and regulating both sweet and sour natural gas along with air and other inert gasses. The Type 335 is available with ¼” ports and three different ranges of allowed output pressure.
Technical Specifications
Port Size
1/4" NPT
Output Range
0-100 psig (0-7 bar), 0-30 psig (0-2 bar), 0-60 psig (0-4 bar)
Max. Flow Capacity- 1/4" Ports
33 scfm (934 Nl/min)
Max. Supply Pressure
250 psig (17 bar)
Ambient Temperature Limits
-20° to 180°F (-29° to 82°C)
Filter
5 micron, 40 micron
Cv Value
0.5
Exhaust Capacity
0.1 scfm (2.83 Nl/min)
Sensitivity
1 in. (25.4 mm)
Air Consumption
Less than 5 scfh (2.5 Nl/min)
Supply Pressure Sensitivity
Less than 0.25 psig (0.017 bar) for 25 psig (1.7 bar) change
Mounting
Pipe, Bracket, Through Body
Operating Media
Air, Inert Gas, Sweet Natural Gas or Sour Natural Gas
Weight
1.2 lbs (0.54 kg)
Body Materials
Diecast Aluminum Alloy
Other Materials
Polyethylene, Viton, 316 Stainless Steel, Aluminum, Heat Treated Plated Steel
Part Number
CA-335-030-021-1/4-in
