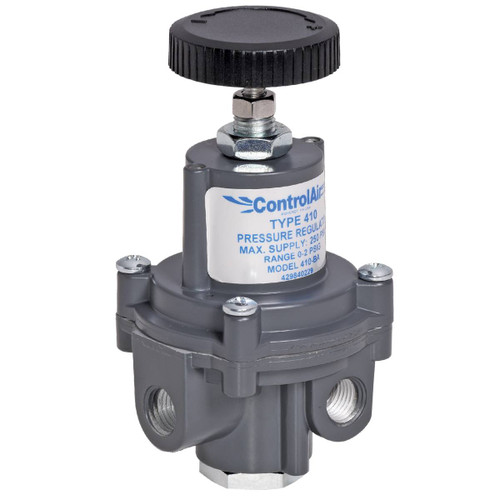

ControlAir Type 410 Series High Precision Pressure Regulator, CA-410-02-0014-1/4-in, Type 410, 0 - 2 Psig (0 - 0.14 Bar), 1/4" National Pipe Thread
Brand : ControlAir
Starting At:
$106.99
- SKU:
- CA-410-02-0014-1/4-in
- Size Dropdown:
- True
- Processing Time:
- 14
- Specific Date:
- Days
ControlAir Type 410 Series CA-410-02-0014-1/4-in, High Precision Pressure Regulator
Features
- Stable Output & Reliability – Consistently meets control requirements under changing operating conditions.
- Corrosion Resistant Construction – Die-cast housings are finished with iridate and epoxy paint.
- Low Droop at High Flow Levels – Aspirator design helps maintain set pressure and minimize “droop” at higher flow levels.
- High Quality Level – Each regulator receives a pressure, leak and flow test at the factory prior to shipment.
- Low Cost – This economical unit is ideal for high volume OEM applications.
Reliable, All Purpose Air Regulation
The ControlAir Type 410 is a high precision regulator designed to provide reliable performance under variable operating conditions. This quality unit is ideal as an economical alternative for control of industrial process applications. The regulation characteristics of the Type 410 have been proven to be superior to comparable competitive units. Durable materials and corrosion resistant construction provide reliable operation in harsh industrial environments.
Technical Specifications
Exhaust Capacity
0.1 scfm (2.8 Nl/min) downstream pressure 5 psig (0.3 bar) above set point
Sensitivity
1/2" (1.3 cm) water column
Effect of Supply Pressure Variation
Less than 0.2 psig (0.01 BAR) for 25 psi (1.7 BAR) change
Max. Supply Pressure
250 psig (17 bar)
Air Consumption
Less than 6 scfh (170 Nl/min)
Port Size
1/4" NPT
Mounting
Pipe, panel or optional bracket
Materials
Body: Diecast aluminum alloy
Diaphragm: Nitrile elastomer and nylon fabric
Trim: Brass, zinc plated steel, acetal
Temperature Limits
0° to 160°F (-18° to 71°C)
Output Range
0 - 2 Psig (0 - 0.14 Bar)
Part Number
CA-410-02-0014-1/4-in
