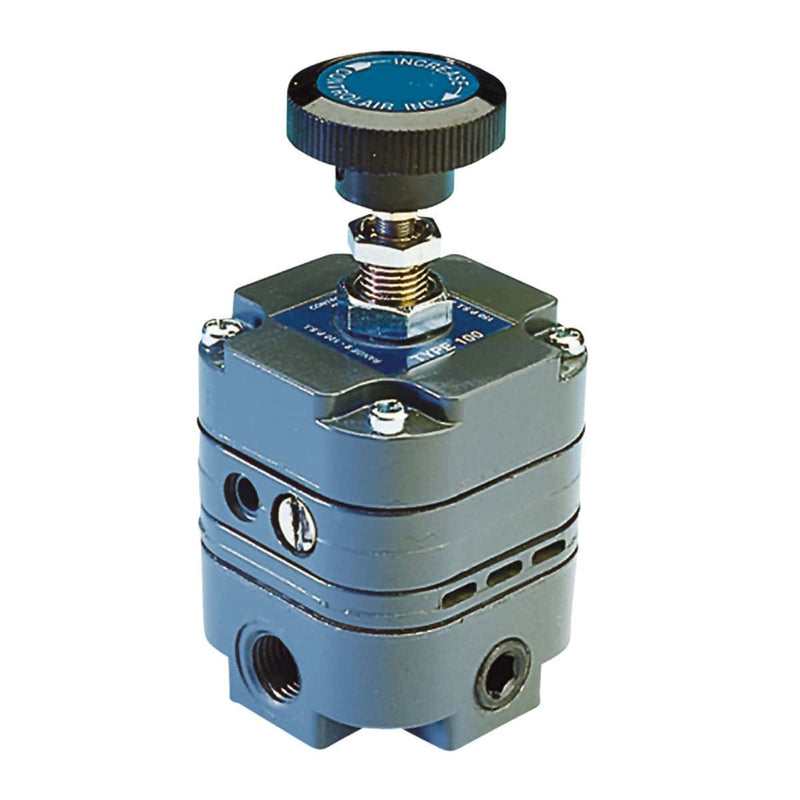

ControlAir Type 100 Series Precision Air Pressure Regulator, 429-805-008, 150-CC, 2 - 120 Psi (0.14 - 8.3 Bar), 3/8" (NPT/BSP)
SKU:
429-805-008
Made in the United States
$274.99
Price on request
Was: $282.65
You Save $7.66
Available to Order
Port Size1/4" BSP, 1/4" NPT, 1/8" BSP, 1/8" NPT, 3/8" BSP, 3/8" NPT
Max. Supply Pressure150 psig (10 bar)
Body MaterialsDiecast zinc alloy
Ambient Temperature Limits-20° to 160°F (-29° to 71°C)
Gauge Ports (2)1/4" NPT, 1/4" BSP
Typically ships in 14 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Output Range | 0.5-25 psig (0.03-1.7 bar), 2-120 psig (0.14-8 bar), 2-40 psig (0.14-2.7 bar), 2-60 psig (0.14-4 bar) |
|---|---|
| Exhaust Capacity | Up to 15 scfm (425 NL/min) |
| Sensitivity | 1/8 in. (3.2 mm) |
| Air Consumption | 6 scfh (3 NL/min) |
| Mounting Options | Pipe, Panel, Bracket |
| Part Number | 429-805-008 |
| Brand | ControlAir |
| Manufacturer Part # | 429-805-008 |
| Size | 3/8" |
| Country of Origin | Made in the United States |
Materials & Construction
| Body Materials | Diecast zinc alloy |
|---|
Performance
| Flow Capacity (100 psig supply - 20 psig outlet) | 14 scfm (420 NL/min) |
|---|---|
| Max. Supply Pressure | 150 psig (10 bar) |
| Supply Pressure Sensitivity | less than 0.005 psig (0.003 bar) for a 25 psi (1.7 bar) change |
| Ambient Temperature Limits | -20° to 160°F (-29° to 71°C) |
Connections
| Port Size | 1/4" BSP, 1/4" NPT, 1/8" BSP, 1/8" NPT, 3/8" BSP, 3/8" NPT |
|---|---|
| Gauge Ports (2) | 1/4" NPT, 1/4" BSP |
Dimensions & Weight
| Weight | 1.4 lb. (635 g) |
|---|
Overview
ControlAir Type 100 Series Precision Air Pressure Regulator (150-CC)
Features:
- Accurate Pressure Regulation
- Stable Output
- Dependable Startup
- High and Extra High Relief Capacity
- Temperature Stability
- Locking Capability
- Plunger Operation Model Available
- Low Range Model with Output Pressure Below 2.0 psig
- Bottom Ported Model with Mount Kit for Manifold Mounting
Options & Features (See Specification Sheet For Full List):
Dependable, Highly Accurate Pressure Regulation to 0.1%
The Type 100 is a high precision, multi-stage pressure regulator. This pressure controller provides the highest level of regulation accuracy and repeatability available. The Type 100 is ideal for applications that call for the utmost of control and maximum stability under variable operating conditions. A stainless steel measuring capsule is used as a sensing element to activate the high gain servo balanced control mechanism in which the main valve is controlled by a pilot valve. This allows for greater accuracy and eliminates many of the problems associated with conventional regulators using range springs and diaphragms.
-
Type 100
Standard
Standard version relief-offered in three pressure ranges (2-40 psi, 2-60 psi, 2-120 psi) and three port sizes (1/8″, 1/4″, 3/8″). -
Type 100HR
High Relief
High relief capacity allows for quick “blow-down” capability for rapid exhaust of output pressure. Ideal for pneumatic counterbalance applications. -
Type 100EHR
Extra High Relief
Extra high relief allows quick “blow-down” for up to 15 scfm (450 Nl/min) exhaust capacity. -
Type 100LR
Low Range
Low range capability provides accurate pressure regulation at lower output range. Operates with an output pressure range of 0.5 psig to 25 psig. Maximum supply pressure is 50 psig. -
Type 100PL
Plunger
Linear actuation of a plunger controls regulated pressure rather than manual adjustment of a knob. -
Type 100BP
Bottom Port
Bottom ported supply and output pressure, as well as four tapped mounting holes for manifold mounting. Suitable for applications with limited space. -
Type 100M
Motorized
Motorized regulator. Regulation accuracy and sensitivity of the Type 100. Suitable for remote, “fail in place” applications.
