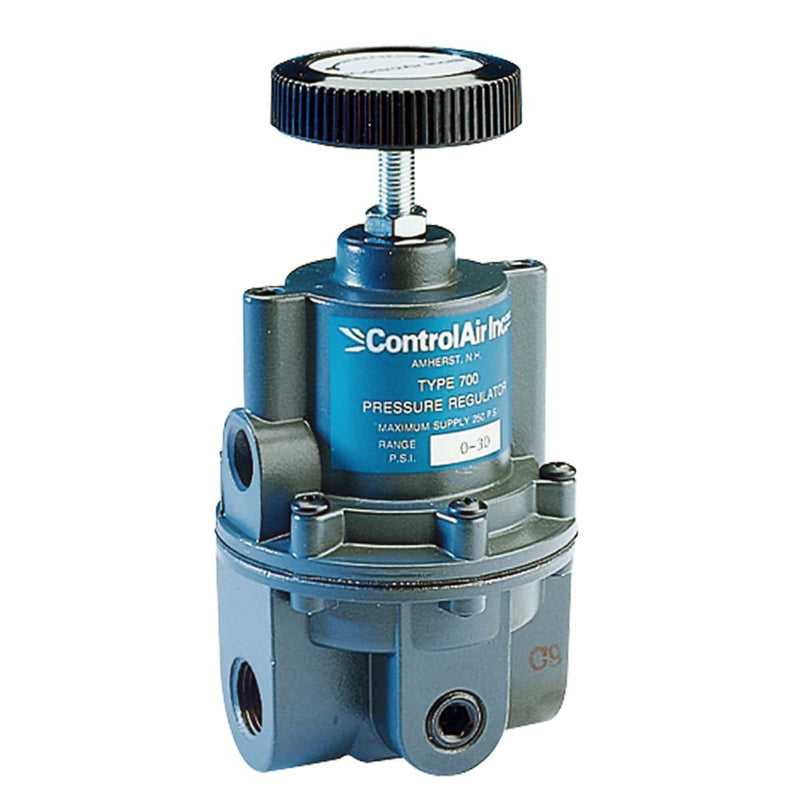

ControlAir Type 700 Precision Air Pressure Regulator, 429-822-065, 700-BFKU, 0-150 Psig (0-10.3 Bar), 1/4" BSP, Knob With Stainless Steel Stem, BSP Porting
SKU:
429-822-065
Made in the United States
$154.99
Price on request
Available to Order
Available Models
429-822-001
429-822-014
429-822-058
429-822-008
429-822-047
429-822-057
429-822-015
429-822-030
429-822-007
429-822-026
429-822-054
429-822-049
429-822-063
429-822-043
429-822-055
429-822-052
429-822-031
429-822-050
429-822-046
429-822-051
429-822-065
429-822-010
429-822-020
429-822-009
429-822-045
429-822-059
429-822-012
429-822-019
429-822-037
429-822-053
Port Size1/4"
Max. Supply Pressure250 psig (17 bar)
Body MaterialDiecast Aluminum Alloy
Ambient Temperature Limits-40° to +160°F '(-40° to 71°C)
BSP PortingYes
Typically ships in 14 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Output Range | 0-150 psig (0-10.3 bar) |
|---|---|
| Exhaust Capacity | 4 scfm (120 NL/min) |
| Sensitivity | 1/8" in. (3.2 mm) |
| Air Consumption | Less than 12.0 scfh (340 Nl/hr) |
| Mounting | Pipe, Panel, Bracket |
| Part Number | 429-822-065 |
| Brand | ControlAir |
| Manufacturer Part # | 429-822-065 |
| Size | 1/4" |
| Country of Origin | Made in the United States |
Materials & Construction
| Body Material | Diecast Aluminum Alloy |
|---|---|
| Other Material | Stainless steel, Brass, Plated Steel Acetal, Buna-N, Polyester, Phenolic Plastic |
| Knob With Stainless Steel Stem | Yes |
Performance
| Flow Capacity | 80 scfm (2,264 Nl/min) |
|---|---|
| Max. Supply Pressure | 250 psig (17 bar) |
| Supply Pressure Sensitivity | Less than 0.1 psig for a 100 psig change (0.007 bar for a 6.7 bar change) |
| Ambient Temperature Limits | -40° to +160°F '(-40° to 71°C) |
Connections
| Port Size | 1/4" |
|---|---|
| BSP Porting | Yes |
Dimensions & Weight
| Weight | 1.625 lbs (0.74 kg) |
|---|
Overview
ControlAir Type 700 429-822-065, 700-BFKU Precision Air Pressure Regulator
Features:
- 1/4”, 3/8”, 1/2” NPT/BSP Porting
- High Flow Capacity
- Allows flows up to 80 scfm (2,264 Nl/min)
- Sensitive
- Senses output pressure deviations to within
- 1/8 inch water column pressure
- Stable Output
- Dampening action of aspirator tube makes this regulator insensitive to changes in flow
- On-Line Maintenance
- Can be serviced without removal from air line
High Flow Capacity & Accurate Pressure Control
- The Type 700 is designed for applications that require high flow capacity and accurate process control. A poppet valve which is balanced by utilizing a rolling diaphragm insures a constant output pressure even during wide supply pressure variations. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the air supply in accordance with the flow velocity.
