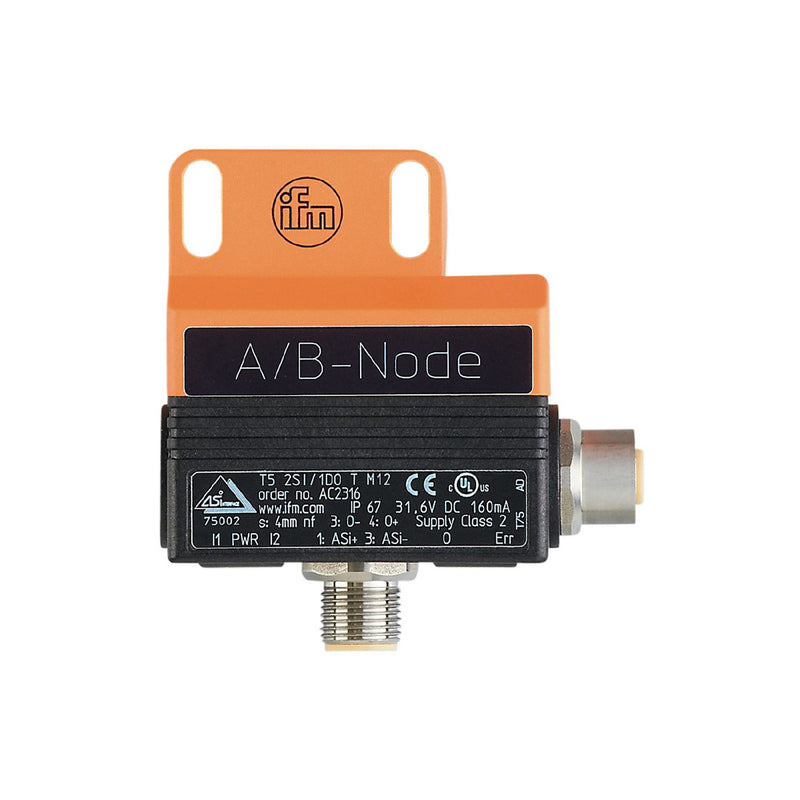

IFM AC2316 AS-Interface dual sensor for actuator feedback – AS-i, M12, IP67,
SKU:
AC2316
Made in Germany
$290.99
Price on request
Available to Order
Ambient Temperature-20°C to 70°C
Typically ships in 5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Application | Position sensor for valve actuators; actuator control |
|---|---|
| Electrical Design | AS-i |
| Sensing Range | 4mm |
| Current Consumption | <160 mA |
| Protection | IP67 |
| Display | Switching Status: 2 x LED, Yellow |
| Installation Specification | Mounting: Non-flush mountable |
| Brand | IFM |
| Manufacturer Part # | AC2316 |
| Country of Origin | Made in Germany |
Performance
| Operating Voltage | 26.5–31.6 V (requires cULus Class 2 power source) |
|---|---|
| Ambient Temperature | -20°C to 70°C |
| Permanent current rating of switching output DC | 100V |
