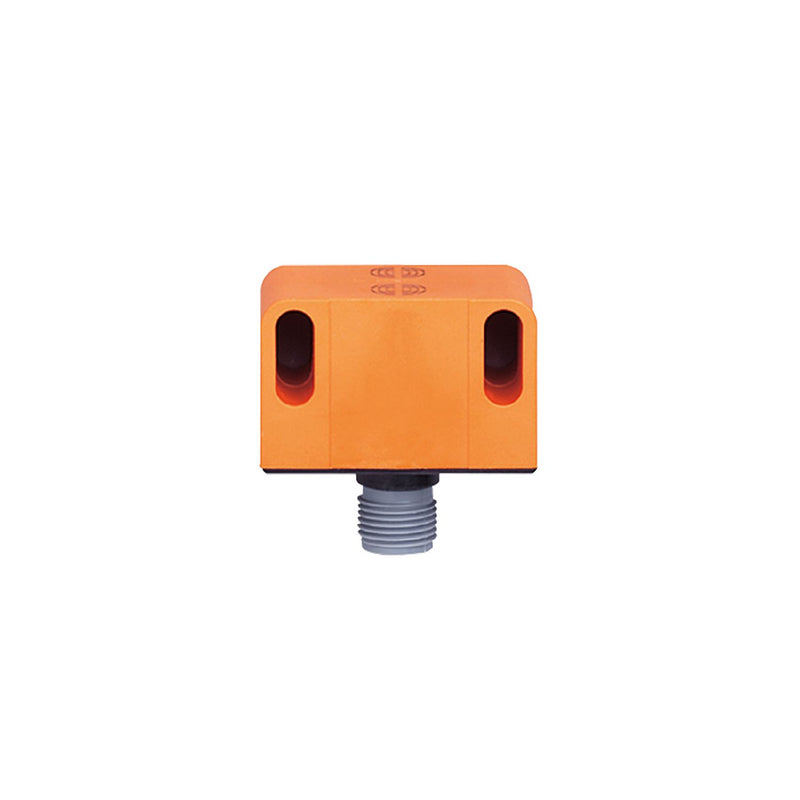

IFM IN5224 Inductive Sensor, 4 mm Sensing Range, Non-Flush Mountable, 2x Normally Open, 2-Wire, PNP/NPN, M12 Connector, IP67
SKU:
IN5224
Made in Germany
$184.99
Price on request
Available to Order
Available Models
IN0100 – 4 mm Range
IN0108 – 4 mm Range
IN0110 – 4 mm Range
IN0117 – 4 mm Range
IN0131 – 4 mm Range
IN5224 – 4 mm Range
IN5225 – 4 mm Range
IN5251 – 4 mm Range
IN5280 – 4 mm Range
IN5285 – 4 mm Range
IN5290 – 4 mm Range
IN5327 – 4 mm Range
IN5331 – 4 mm Range
IN5334 – 4 mm Range
IN5337 – 4 mm Range
IN5373
IN5377 – 4 mm Range
IN5409 – 4 mm Range
IN5410 – 4 mm Range
IN5415 – 4 mm Range
IN5416 – 4 mm Range
IN5417 – 4 mm Range
SizeIN5224
ConnectionConnector: 1 x M12; coding: A; Contacts: gold-plated
Typically ships in 5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Application | Position sensor for valve actuators with gold-plated contacts |
|---|---|
| Ambient Temp. | -25°C to 80°C |
| Output Function | 2 x Normally Open |
| Switching Frequency | 1300 Hz (DC) |
| Sensing Range | 4 mm |
| Real Sensing Range Tolerance | ±10% |
| Hysteresis and Accuracy | 1-15 % of range; drift ±10 % |
| Protection Class | IP67 |
| Mounting | Non-flush mountable |
| Display | Switching status: 2 x LED, Yellow |
| Brand | IFM |
| Manufacturer Part # | IN5224 |
| Size | IN5224 |
| Country of Origin | Made in Germany |
Performance
| Operating Voltage | 10-36V (DC) |
|---|---|
| Permanent Current Rating | 250 mA (DC) |
| Operating Distance | 0-3.25 mm |
Connections
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
Dimensions & Weight
| Dimensions | 40x26x26 mm |
|---|
