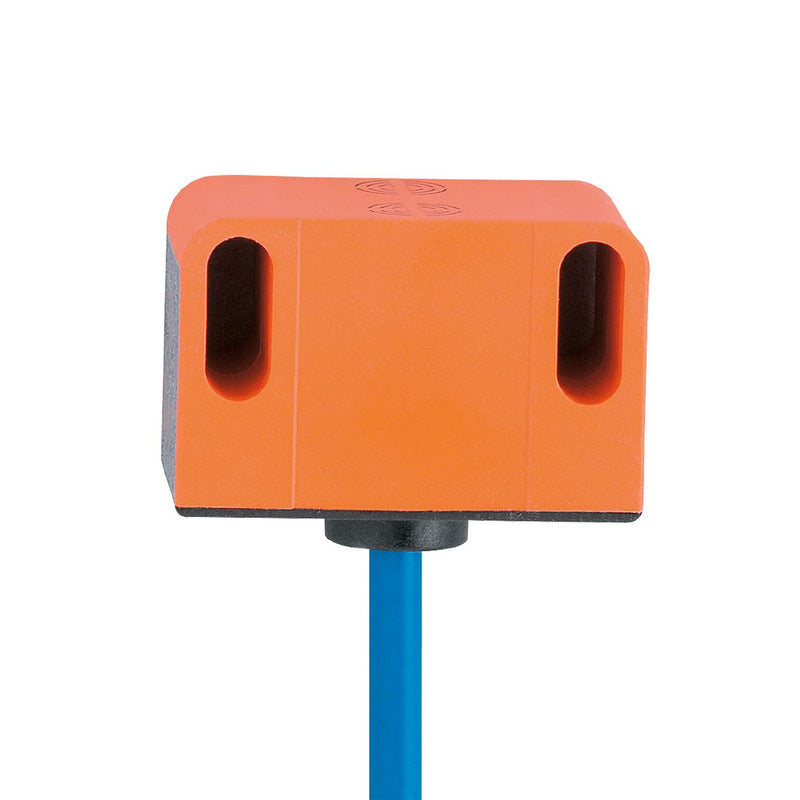

IFM NN5009 Inductive Dual Sensor, 4 mm Sensing Range, Non-Flush Mountable, 2x Normally Closed, 3-Wire, NAMUR, 2 m Silicone Cable, IP67
SKU:
NN5009
Made in Germany
$131.99
Price on request
Available to Order
Available Models
SizeNN5009
ConnectionCable: 2 m, silicone; 4 x 0.34 mm²
Typically ships in 5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Application | Position sensor for valve actuators |
|---|---|
| Electrical Design | NAMUR |
| Ambient Temp. | -20°C to 80°C |
| Output Function | 2x Normally Closed |
| Nominal Voltage | 8.2V (DC); (1kΩ) |
| Switching Frequency | 1800 Hz (DC) |
| Sensing Range | 4mm |
| Real Sensing Range Tolerance | ±10% |
| Hysteresis and Accuracy | 1-15 % of range; drift ±10 % |
| Protection Class | IP67 |
| Mounting | Non-flush mountable |
| Display | Switching status: 2 x LED, Yellow |
| Brand | IFM |
| Manufacturer Part # | NN5009 |
| Size | NN5009 |
| Country of Origin | Made in Germany |
Connections
| Connection | Cable: 2 m, silicone; 4 x 0.34 mm² |
|---|
Dimensions & Weight
| Dimensions | 40x26x60 mm |
|---|
