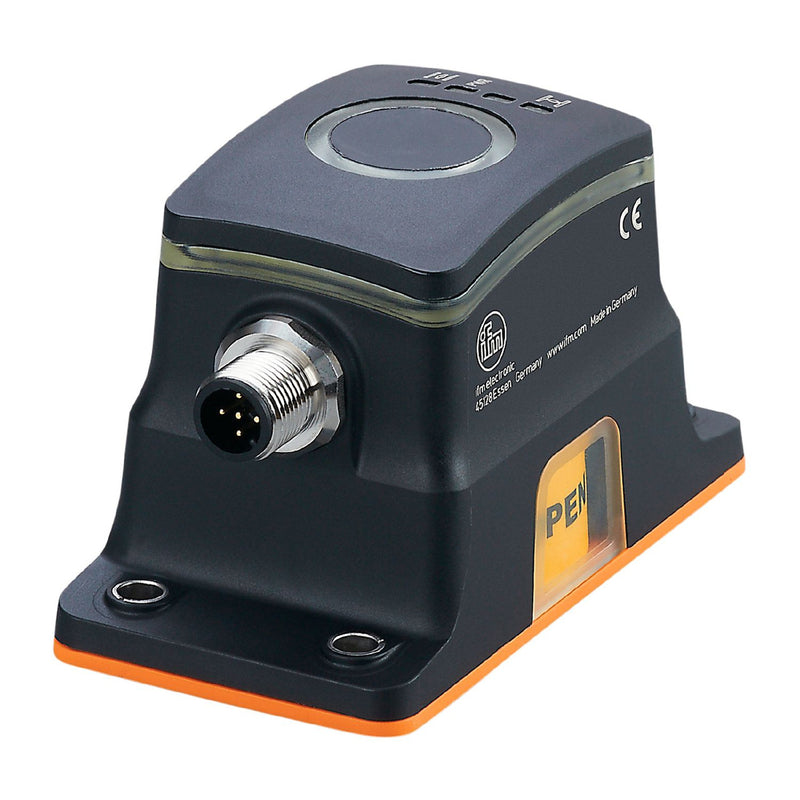

IFM Position Sensor for Valve Actuators
SKU:
IFM-Position-Sensor
Starting at
$301.99
Out of Stock
Select a Model to Order This page shows the full series. Choose a specific model below to view pricing and add to cart.
Please select a model to order.
Select a model above to add to cart.
ConnectionConnector: 1 x M12; coding: A; Moulded body: stainless steel
Ambient Temperature-25°C to 70°C
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Communication Interface | IO-Link |
|---|---|
| Electrical Design | PNP |
| Current Consumption | <40 mA |
| Output Function | 2x/ 3 Normally Open / Normally Closed (selectable) |
| Protection | IP 65; IP 67; (Target puck area dust-protected) |
| Monitoring Range | 360° |
| Brand | IFM |
| Manufacturer Part # | IFM-Position-Sensor |
Performance
| Operating Voltage | 10-30V (DC) |
|---|---|
| Ambient Temperature | -25°C to 70°C |
Connections
| Connection | Connector: 1 x M12; coding: A; Moulded body: stainless steel |
|---|
Dimensions & Weight
| Dimensions | 95x50x57 mm |
|---|
